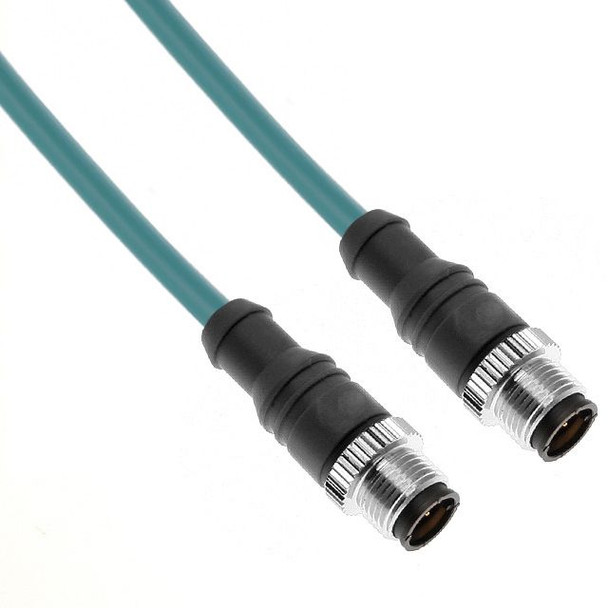

The M12 8 pole Ethernet connectors from Mencom combine the easy of quick disconnect, world recognized M12 connectors with Cat 5e rated Industrial Ethernet cabling. They are designed to provide reliable, easy to install industrial Ethernet connection in rugged and harsh environments. With PVC, PUR, and Shielded cable options, various lengths, field wireable plugs, and mating receptacles, the product offering covers most industrial applications.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | Ethernet |
| Pin Count | 8 |
| Gender | Male/Male Extension |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | Male Straight |
| Mating Thread / Type Head 2 | M12 |
| Coupling Thread Gender2 | Male |
| Wire Gauge | 24 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 60 |
| Amperage Rating | 2 |
| Cable Length in meters | 4 |
| Cable Length in feet | 12 |
| Cable O.D. | 0.22 |
| Color Code | Ethernet |
| Cable Jacket Material | PVC |
| Jacket Color | Teal |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ethernet Cable Standard | CAT5e |
| Ground Wire | No |
| IP Rating | IP67 |
| Weight (lbs.) | 0.400000 |
