Description

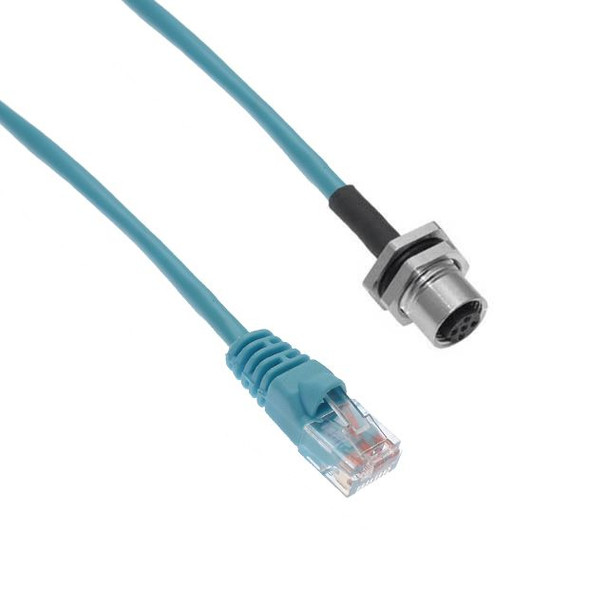

The M12 8 pole Ethernet connectors from Mencom combine the easy of quick disconnect, world recognized M12 connectors with Cat 5e rated Industrial Ethernet cabling. They are designed to provide reliable, easy to install industrial Ethernet connection in rugged and harsh environments. With PVC, PUR, and Shielded cable options, various lengths, field wireable plugs, and mating receptacles, the product offering covers most industrial applications.
Resources
| Catalog PDF |  L-35.pdf |
|---|---|
| Product Drawing PDF | MDE45-8FR-RJ45-BM-ZZ.PDF |
Product Specifications
| Product Type | Network Connectors |
|---|---|
| Component Type | Receptacle |
| Mencom Series | Ethernet |
| Pin Count | 8 |
| Gender | Male/Female Extension |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | RJ45 Plug |
| Mating Thread / Type Head 2 | RJ45 Plug |
| Coupling Thread Gender2 | RJ45 Plug |
| Wire Gauge | 24 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 42 |
| Amperage Rating | 1.5 |
| Cable Length in meters | 0.5 |
| Cable Length in feet | 1.64 |
| Cable O.D. | 0.22 |
| Color Code | Ethernet |
| Cable Jacket Material | PVC |
| Jacket Color | Teal |
| Mounting Thread | PG-09 |
| Mounting Style | Back Mount |
| Nut | Yes |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ethernet Cable Standard | CAT5e |
| Ground Wire | No |
| IP Rating | IP20 |
| Weight (lbs.) | 0.088000 |
