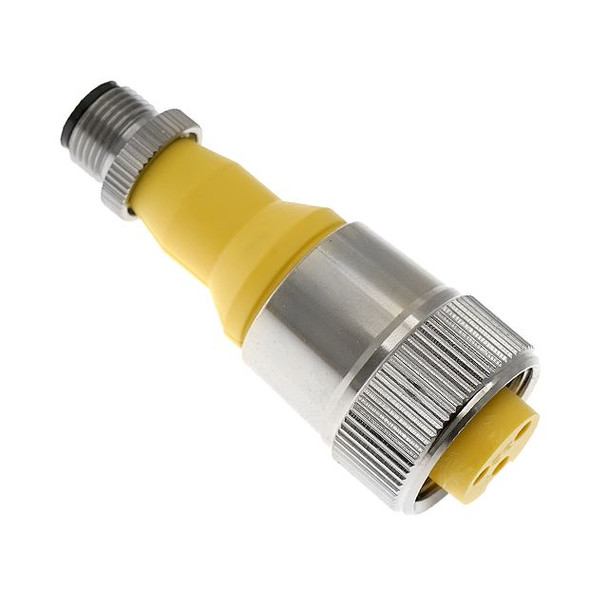

MDC connectors, sometimes referred to as Micro-DC, use an M12 coupling nut and single keyway. These versatile connectors are easy to use and provide plug and play solutions to a wide range of applications. Mencom offers molded cable, field wired connectors, panel mount receptacles, and accessories with choices of cable jackets and connector ends to meet your specific requirements. Some options for the cordsets include, PVC jacket, PUR jacket, TPE jacket, Hi-Flex cable, and shielded cable. Receptacles come in a wide range of mounting styles and threads; including Metric, PG, and NPT.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Adapter |
| Mencom Series | MDC (A-coded) |
| Pin Count | 3 |
| Gender | Male/Female Extension |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | 7/8-16UN2 |
| Coupling Thread Gender2 | Female |
| Wire Gauge | N/A |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Color Code | N/A |
| Cable Jacket Material | PVC |
| Jacket Color | Yellow |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ground Wire | No |
| IP Rating | IP67 |
| Weight (lbs.) | 0.100000 |
