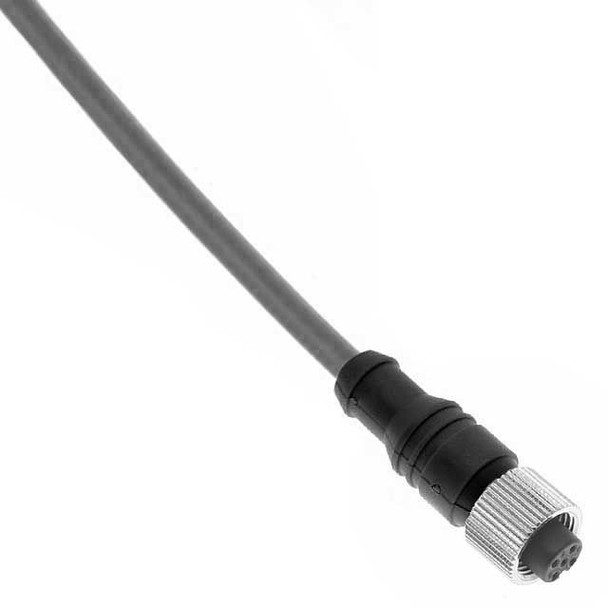

DeviceNet Drop, sometimes referred to as "Thin Cable" pairs MIN or MDC connectors with DeviceNet cabling to allow for easy plug and play connectivity in DeviceNet applications. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles, and DeviceNet accessories to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | DeviceNet Drop |
| Pin Count | 5 |
| Gender | Female |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 22/24 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | 15 |
| Cable Length in feet | 50 |
| Cable O.D. | 0.29 |
| Color Code | DeviceNet |
| Cable Jacket Material | PVC |
| Jacket Color | Gray |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | Yes |
| Ground Wire | No |
| Gland Upper Range | 0.29 |
| Gland Lower Range | 0.29 |
| IP Rating | IP69 |
| Weight (lbs.) | 2.490000 |
