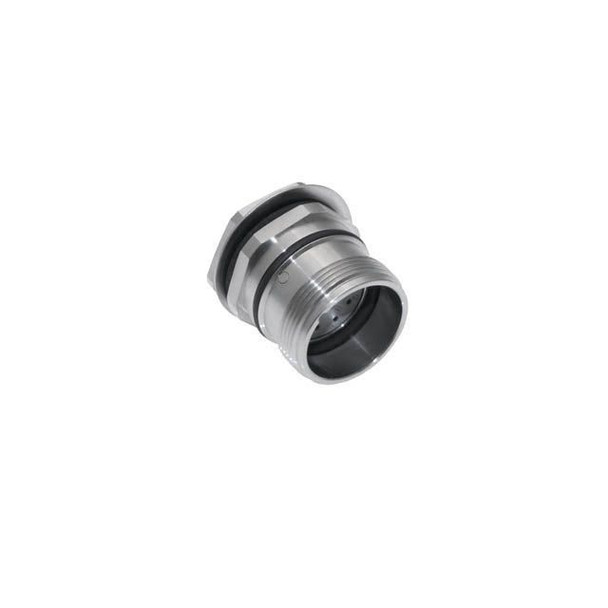

MC series connectors, sometimes referred to as M16, M23, or M27 connectors, provide rugged plug and play solutions for demanding industrial applications. Mencom offers molded cable, field wired connectors, and panel mount receptacles to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Receptacle |
| Mencom Series | MC |
| Pin Count | 6 |
| Gender | Female |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | M23 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | 14 |
| Lower AWG | 20 |
| Voltage Rating | 300 |
| Amperage Rating | 20 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Color Code | N/A |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | M20 |
| Mounting Style | Front Mount |
| Nut | Yes |
| Termination | Crimp |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ground Wire | No |
| mcvhpin | no |
| IP Rating | IP67 |
| Weight (lbs.) | 0.080000 |
