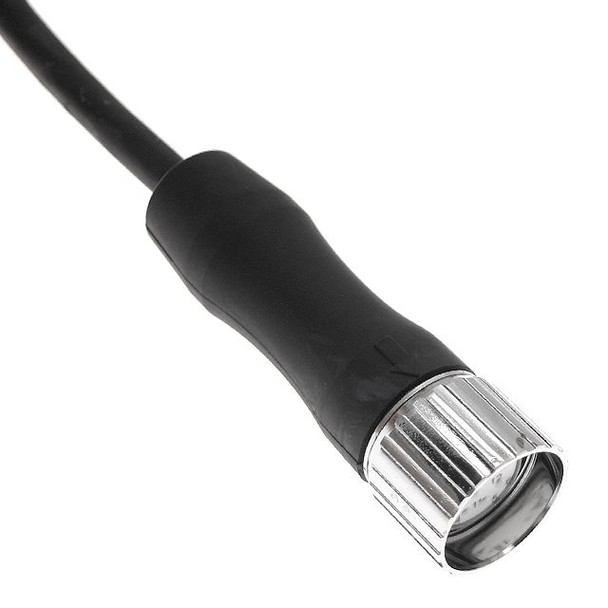

MC series connectors, sometimes referred to as M16, M23, or M27 connectors, provide rugged plug and play solutions for demanding industrial applications. Mencom offers molded cable, field wired connectors, and panel mount receptacles to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | MC |
| Pin Count | 16 |
| Home Run Pin Count | 16 |
| Gender | Female |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | M23 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 150 |
| Amperage Rating | 5 |
| Cable Length in meters | 10 |
| Cable Length in feet | 30 |
| Cable O.D. | 0.527 |
| Color Code | Numbered Wires |
| Cable Jacket Material | PVC PLTC-ER |
| Jacket Color | Black |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Termination | N/A |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ground Wire | Yes |
| Gland Upper Range | 0.527 |
| Gland Lower Range | 0.527 |
| mcvhpin | no |
| IP Rating | IP67 |
| Weight (lbs.) | 6.052000 |
