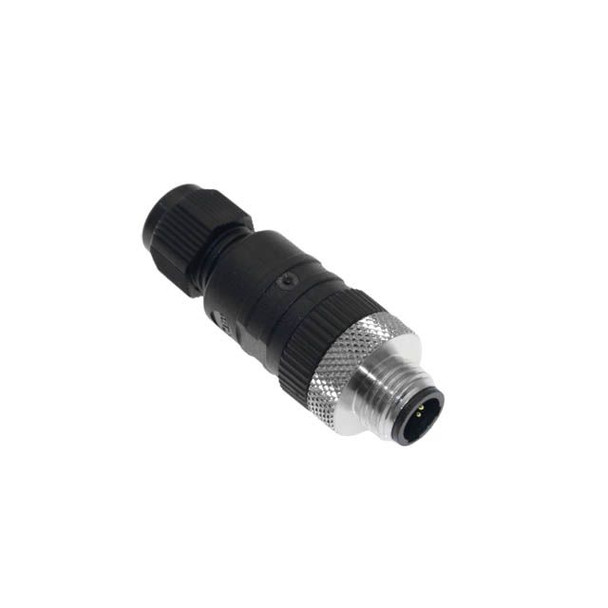

MAC connectors, sometimes referred to as Micro-AC, use a 1/2-20UN2 coupling nut, a dual keyway, and different color code than the MDC connectors. Although they are similar in size to the MDC (M12) connectors, they are strategically different to prevent wiring errors. These easy to use plug and play connectors are offered with molded cable, as field wired connectors, panel mount receptacles, and accessories with choices of cable jackets and connector ends to meet your specific requirements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Field Wireable |
| Mencom Series | MAC (C-coded) |
| Pin Count | 3 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 1/2-20UN2 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | 18 |
| Lower AWG | 24 |
| Voltage Rating | 250 |
| Amperage Rating | 4 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Cable O.D. Range | PG09 4-8mm |
| Color Code | AC |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Nickel Plated Brass |
| Shielding | No |
| Ground Wire | No |
| Gland Upper Range | 8 |
| Gland Lower Range | 6 |
| IP Rating | IP67 |
| Weight (lbs.) | 0.050000 |
