Description

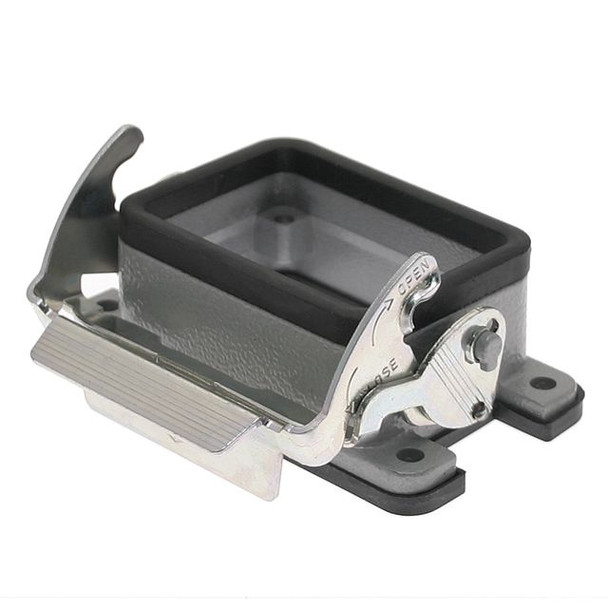

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CVI aluminum die cast Bases use a patented V-type stainless steel locking system that provides consistent clamping force and IP65 protection even after 500 mating cycles. These bulkhead mounted bases will mate with any hood of the corresponding size.
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | JCV |
| Component Type | Base |
| Housing/Insert Type | JEI |
| Lever Type | V-Type Single Latch |
| Enclosure Dimension | 44.27 |
| Number of Entries | 0 |
| Gasket/O-Ring | Yes |
| Insert Dimension | 44.27 |
| Gender | Male |
| Mounting Style | Bulkhead Mount |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Metal |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP66 |
| Weight (lbs.) | 0.204000 |
