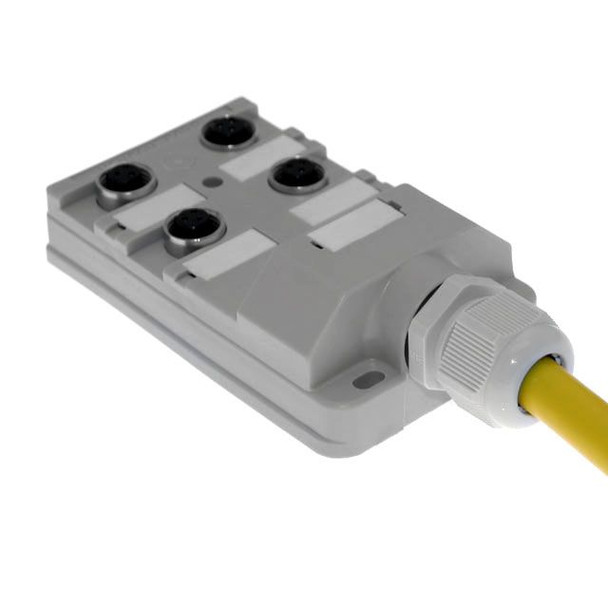

JAC junction blocks provide convenient connectivity for multiple devices using the MAC (1/2-20UN) connector. These junction blocks are offered in 4, 6, and 8 port configurations with a variety of home run options.
Resources
Product Specifications
| Product Type | Junction Blocks |
| Mencom Series | JAC |
| Pin Count | 3 |
| Number of Ports | 4 Port |
| Port Coupling | 1/2-20UN2 |
| Port Thread Gender | Female |
| Home Run Connector | Cable |
| Mating Thread / Type Head 1 | N/A |
| Home Run Coupling | N/A |
| Home Run Pin Count | 6 |
| Gender | N/A |
| Circuit | No LED |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 125 |
| Amperage Rating | 10 |
| Cable Length in meters | 5 |
| Cable Length in feet | 15 |
| Color Code | AC |
| Cable Jacket Material | PVC |
| Cable O.D. | 0.38 |
| Jacket Color | Yellow |
| Shell / Coupling Nut Material | N/A |
| IP Rating | IP67 |
| Weight (lbs.) | 1.729700 |
