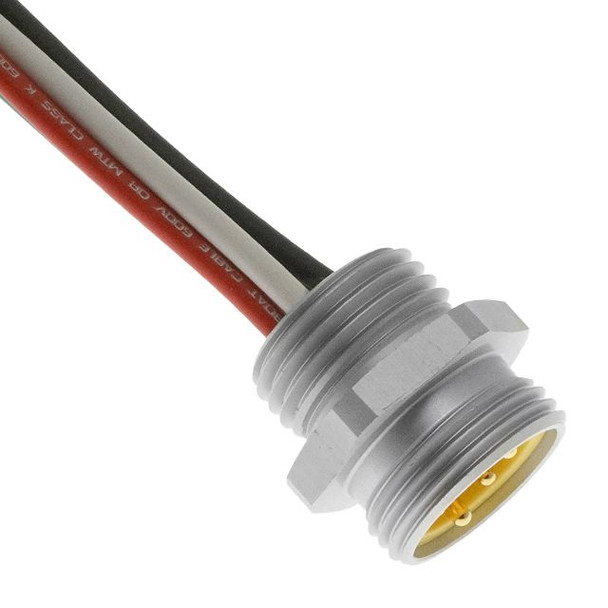

Mencom Hazardous Location Connectors series is designed to meet stringent electrical requirements for protection under Class I Division 2 environments and certified by Underwriters' Laboratories (UL). 'Class I' is defined as a hazardous location in which flammable gas or vapor may be present in sufficient quantities to be considered ignitable or explosive. 'Division 2' is defined as an area that is not likely to contain dangerous concentrations of flammable substances in closed containers. Common Class I Division 2 hazardous locations include refineries, utility gas plants, coal mines, and liquid-gas storage facilities. Hazardous Location Series MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements for hazardous environments.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Receptacle |
| Mencom Series | Hazardous Location MIN Size I |
| Pin Count | 3 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 16 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 600 |
| Amperage Rating | 13 |
| Cable Length in meters | 0.3 |
| Cable Length in feet | 1 |
| Cable O.D. | N/A |
| Color Code | North American |
| Cable Jacket Material | PVC |
| Jacket Color | N/A |
| Mounting Thread | .5-NPT |
| Mounting Style | Front Mount |
| Nut | No |
| Termination | Discrete |
| Shell / Coupling Nut Material | Clear Anodized Aluminum |
| Shielding | N/A |
| Ground Wire | Yes |
| IP Rating | IP69 |
| Weight (lbs.) | 0.100000 |
