Mencom offers a variety of Foundation Fieldbus molded cordsets, field wired connectors, receptacles, and accessories to provide quick plug and play set up of your devices. The combination of MIN Size I (7/8 in) and M12 connectors with Stainless Steel coupling nuts make this series of products exceptaional for rugged Processing environements.
Resources

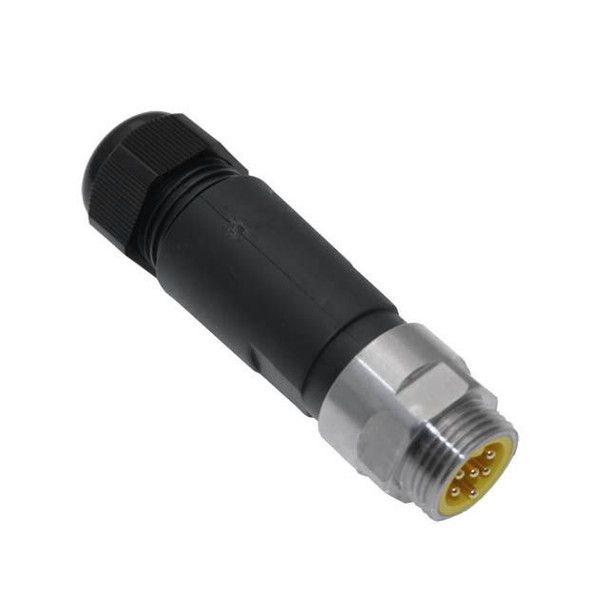

Product Specifications
| Product Type | Network Connectors |
| Component Type | Field Wireable |
| Mencom Series | Foundation Fieldbus |
| Pin Count | 4 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | N/A |
| Upper AWG | 14 |
| Lower AWG | 22 |
| Voltage Rating | 600 |
| Amperage Rating | 15 |
| Cable Length in meters | N/A |
| Cable Length in feet | N/A |
| Cable O.D. | N/A |
| Cable O.D. Range | 8-17mm |
| Color Code | Foundation Fieldbus |
| Cable Jacket Material | N/A |
| Jacket Color | N/A |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | Yes |
| Ground Wire | No |
| Gland Upper Range | 17 |
| Gland Lower Range | 8 |
| IP Rating | IP67 |
| Weight (lbs.) | 0.100000 |
