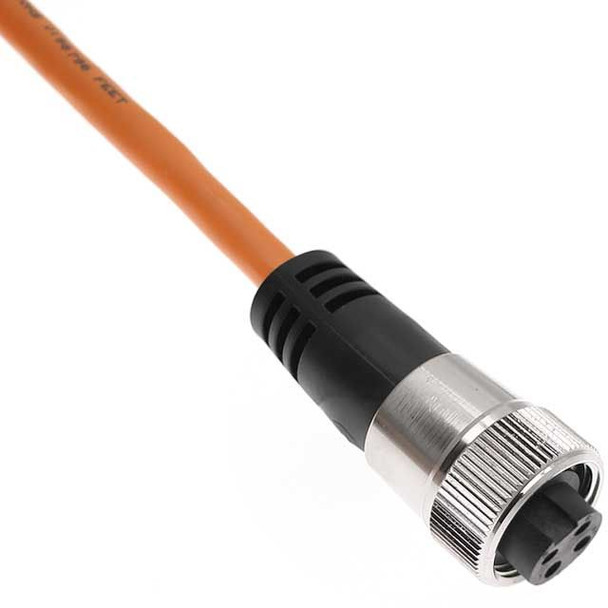

Mencom offers a variety of Foundation Fieldbus molded cordsets, field wired connectors, receptacles, and accessories to provide quick plug and play set up of your devices. The combination of MIN Size I (7/8 in) and M12 connectors with Stainless Steel coupling nuts make this series of products exceptaional for rugged Processing environements.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | Foundation Fieldbus |
| Pin Count | 4 |
| Gender | Female |
| Orientation Head 1 | Female Straight |
| Mating Thread / Type Head 1 | 7/8-16UN2 |
| Coupling Thread Gender1 | Female |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 8 |
| Cable Length in meters | 6 |
| Cable Length in feet | 20 |
| Cable O.D. | 0.305 |
| Color Code | Foundation Fieldbus |
| Cable Jacket Material | PVC |
| Jacket Color | Orange |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | Yes |
| Ground Wire | No |
| Gland Upper Range | 0.305 |
| Gland Lower Range | 0.305 |
| IP Rating | IP69 |
| Weight (lbs.) | 0.906000 |
