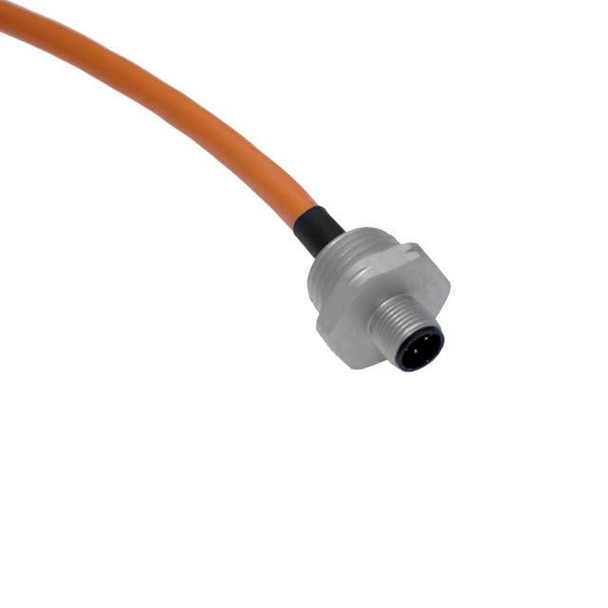

Mencom offers a variety of Foundation Fieldbus molded cordsets, field wired connectors, receptacles, and accessories to provide quick plug and play set up of your devices. The combination of MIN Size I (7/8) and M12 connectors with Stainless Steel coupling nuts make this series of products exceptional for rugged processing environments.
Resources
Product Specifications
| Product Type | Network Connectors |
| Component Type | Receptacle |
| Mencom Series | Foundation Fieldbus |
| Pin Count | 4 |
| Gender | Male |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | M12 |
| Coupling Thread Gender1 | Male |
| Orientation Head 2 | N/A |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 18 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 300 |
| Amperage Rating | 4 |
| Cable Length in meters | 1 |
| Cable Length in feet | 3 |
| Cable O.D. | 0.28 |
| Color Code | Foundation Fieldbus |
| Cable Jacket Material | PVC |
| Jacket Color | N/A |
| Mounting Thread | .5-NPT |
| Mounting Style | Front Mount |
| Nut | No |
| Termination | Cable |
| Shell / Coupling Nut Material | Stainless Steel |
| Shielding | Yes |
| Ground Wire | No |
| IP Rating | IP69 |
| Weight (lbs.) | 1.760000 |
