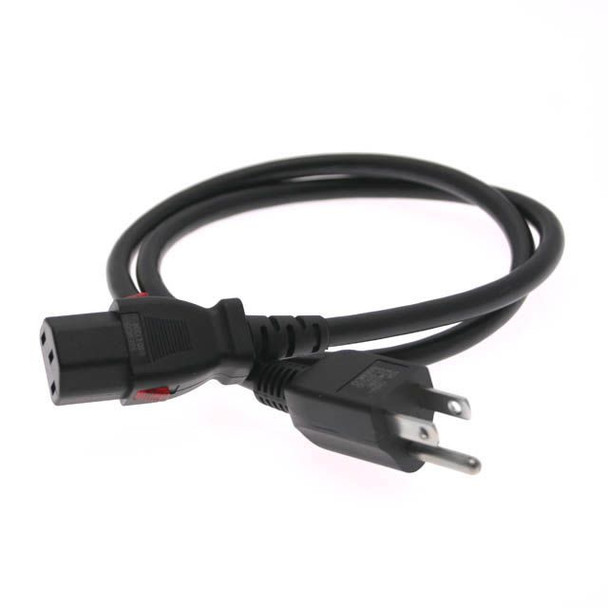

NEMA 5-15 Plug to IEC C13 Connectors provide a secure connection. The C13 connector is specifically an IEC 60320 C13 plug, or more commonly referred to as an IEC plug. Applications that benefit from these connectors include industrial processing, which may have higher than average vibration as well as medical applicances that require continuous operation. The lock engages when the plug is inserted into any universal IEC C14 inlet. Disconnect by depressing the red release buttons.
Resources
Product Specifications
| Product Type | Cables |
| Component Type | Cordset |
| Mencom Series | Panel Interface Connectors |
| Pin Count | 2 |
| Gender | Male/Female |
| Orientation Head 1 | Male Straight |
| Mating Thread / Type Head 1 | N/A |
| Coupling Thread Gender1 | N/A |
| Orientation Head 2 | Female Straight |
| Mating Thread / Type Head 2 | N/A |
| Coupling Thread Gender2 | N/A |
| Wire Gauge | 16 |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Voltage Rating | 125 |
| Amperage Rating | 10 |
| Cable Length in meters | 1 |
| Cable Length in feet | 3 |
| Cable O.D. | 7.9mm |
| Color Code | North American |
| Cable Jacket Material | PVC |
| Jacket Color | Black |
| Mounting Thread | N/A |
| Mounting Style | N/A |
| Nut | No |
| Shell / Coupling Nut Material | N/A |
| Ground Wire | Yes |
| Accessories | Locking Connector |
| IP Rating | IP20 |
| Weight (lbs.) | 0.250000 |
V-31.pdf
