Description

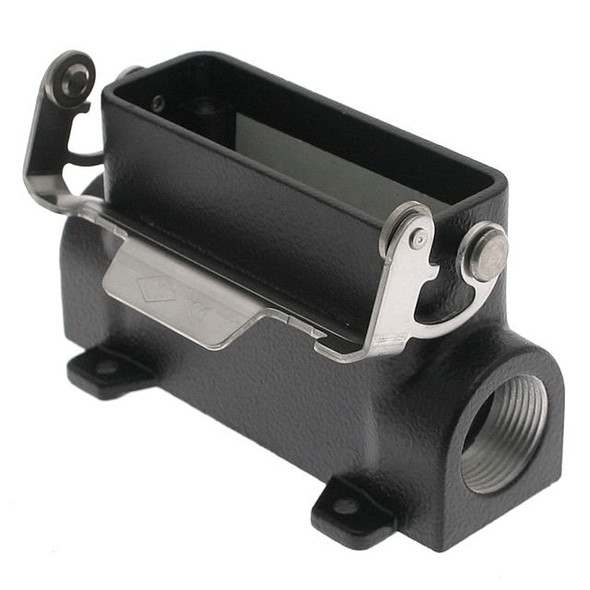

ILME is a globally recognized leader in the heavy duty industrial connector industry. The EMI version of aluminum die cast enclosures (Hoods/Bases) provides a unique solution for connections requiring shielding. The special die casting and highly conductive gasket provide a solution for industrial applications that require electromagnetic compatibility. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings to meet your specific application.
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | CZ |
| Component Type | Base |
| Housing/Insert Type | Aggressive |
| Lever Type | IL-BRID Single Latch |
| Enclosure Dimension | 66.16 |
| Number of Entries | 0 |
| Gasket/O-Ring | Yes |
| Insert Dimension | 66.16 |
| Gender | Male |
| Mounting Style | Bulkhead Mount |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Metal |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP66 |
| Weight (lbs.) | 0.188000 |
