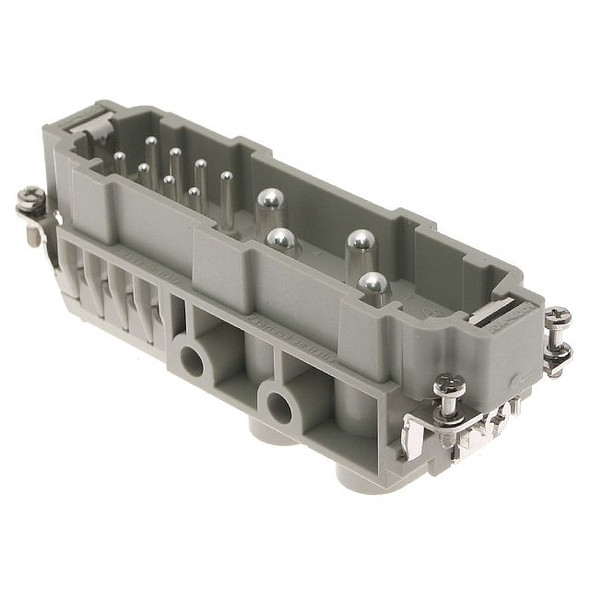

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CX series of inserts are designed to provide higher current carrying pins and/or a combination of pins including both power and signal. Some of these inserts are available in a choice of 8/24, 6/6, 6/36, 4, 4/2, and 4/8 pin configurations. Current carrying capacity ranges from 10 to 100 amps. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 C to +125 C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CX |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 77.27 |
| Gasket/O-Ring | No |
| Pin Count | 4 |
| Insert Dimension | 77.27 |
| Gender | Male |
| Contact Plating | Silver |
| Voltage Rating | 600 |
| Amperage Rating | 80 |
| Cover | No |
| Upper AWG | 6 |
| Lower AWG | 12 |
| Termination | Screw |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.254000 |
