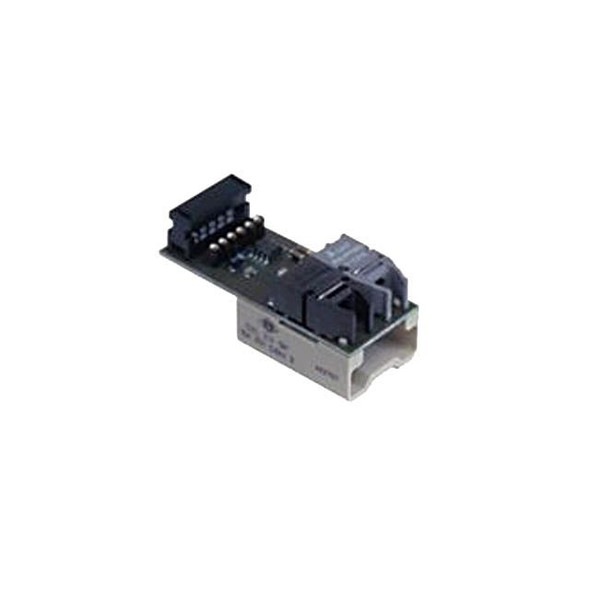

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CXL series combines Fiber Optic and low power pins with rugged CK style enclosures (Hood / Bulkhead Housings) for use in industrial applications. These inserts and connectors create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CXL |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 21.21 |
| Gasket/O-Ring | No |
| Pin Count | 6 |
| Insert Dimension | 21.21 |
| Gender | Male |
| Contact Plating | Silver |
| Amperage Rating | 10 |
| Cover | No |
| Upper AWG | 14 |
| Lower AWG | 26 |
| Termination | Crimp |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.050000 |
