Description

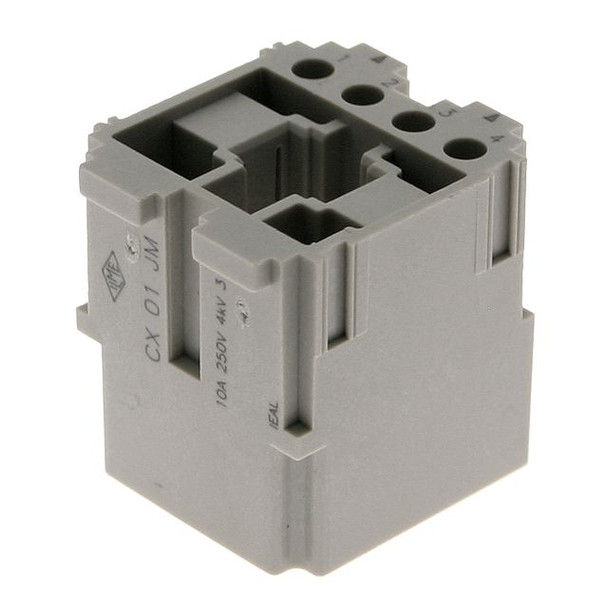

ILME is a globally recognized leader in the heavy duty industrial connector industry. The MIXO series of inserts and frames allow a great variety of current, voltage, pneumatic, and network modules to be assembled into the housings. The modules are available in high voltage, high current, high density, pneumatic, RJ45, USB, coaxial, and bus connections. The modules can be mixed or matched for the specific application needs. When combined with the mating hoods and bases, these versatile inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Resources
| Catalog PDF |  304.pdf |
|---|
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | MIXO |
| Component Type | Insert |
| Housing/Insert Type | MIXO |
| Gasket/O-Ring | No |
| Gender | Male |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Termination | Crimp |
| Temperature Range in Degrees Celsius | -40 C to +120 C |
| Weight (lbs.) | 0.031000 |
