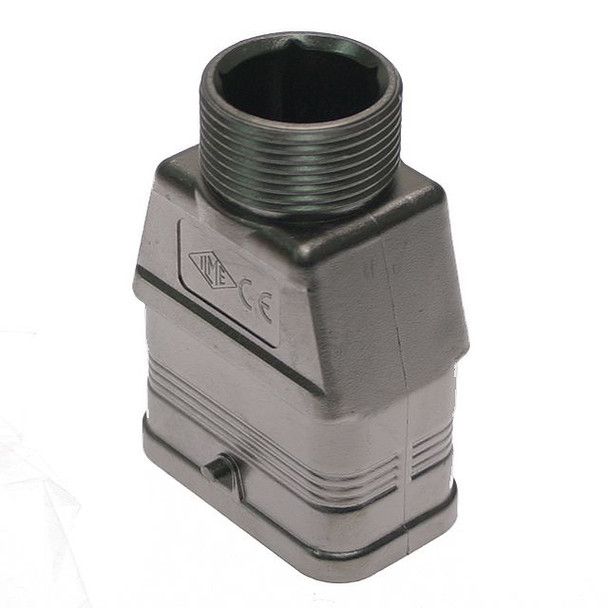

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CQ series of plastic enclosures (Hoods/Bases) provide easy to use quick disconnect solutions for tight spaces. Hoods and surface mount bases come with a PG pening and can be used with the CQ -08 and CQ 4/2 inserts.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CQ |
| Component Type | Hood |
| Housing/Insert Type | EMC |
| Pegs | 2 Pegs |
| Hood Entry | Top with Male Threads |
| Hood Thread | PG21 |
| Enclosure Dimension | 32.13 |
| Number of Entries | 1 |
| Gasket/O-Ring | No |
| Insert Dimension | 32.13 |
| Gender | Male |
| Mounting Style | Cable |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Plastic |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP66/IP67 |
| Weight (lbs.) | 0.060000 |
