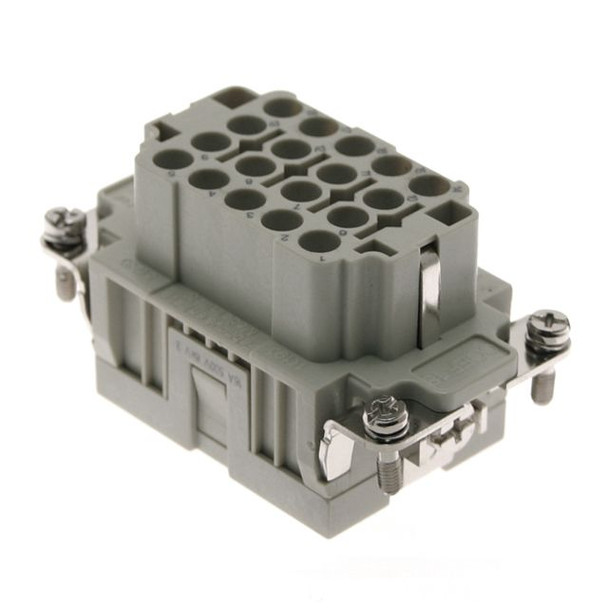

ILME is a globally recognized leader in the heavy duty industrial connector industry.The CQE series of high density crimp terminal inserts are rated for 16 amps with a choice of pin counts that include 10, 18, 32, and 46. These high density inserts provide a small foot print for a large concentration of contact points. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 C to +125 C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CQE |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 57.27 |
| Gasket/O-Ring | No |
| Pin Count | 18 |
| Insert Dimension | 57.27 |
| Gender | Female |
| Voltage Rating | 600 |
| Amperage Rating | 16 |
| Cover | No |
| Upper AWG | 12 |
| Lower AWG | 20 |
| Termination | Crimp |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.117000 |
