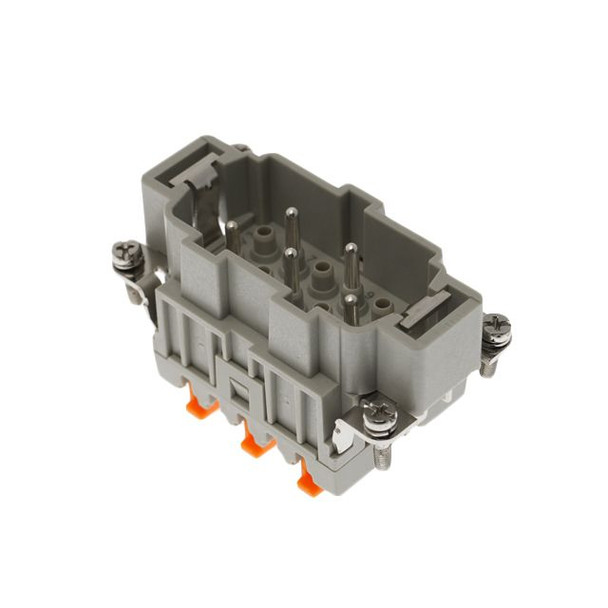

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CSH (Squish) push button spring clamp inserts are rated for 16 amps with a choice of pin counts that include 6, 10, 16, 24, 32, and 48 poles. This patented push button spring clamp termination provides the best vibration resistance and gas tight connections. The innovative design of this insert reduces installation time over the standard screw inserts by 70% and standard spring clamp by 20%. This is a great way to reduce costs without compromising quality or reliability.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CMSH |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 57.27 |
| Gasket/O-Ring | No |
| Pin Count | 5 |
| Insert Dimension | 57.27 |
| Gender | Male |
| Contact Plating | Silver |
| Wire Gauge | 14-26 |
| Voltage Rating | 600 |
| Amperage Rating | 16 |
| Cover | No |
| Upper AWG | 14 |
| Lower AWG | 26 |
| Termination | Squich Spring |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.137200 |
