Description

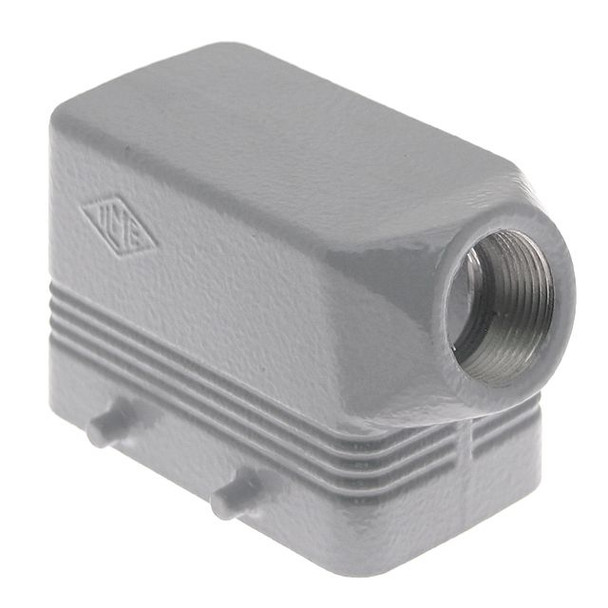

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CM series of aluminum die cast enclosures (Hoods/Bases) are designed for higher voltage applications; they provided insulation not available in the standard housings. These enclosures still use a patented stainless steel locking system that provides consistent clamping force and IP65 protection even after 500 mating cycles. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings. Single lever, double lever, center latch, top entry, front entry, side entry, high construction, surface mount, bulkhead mount, and extra large options are just a few of the available solutions offered to meet your specific application.
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | CM |
| Component Type | Hood |
| Housing/Insert Type | 830V Insulated |
| Pegs | 4 Pegs |
| Hood Entry | Side |
| Hood Thread | PG16 |
| Enclosure Dimension | 57.27 |
| Number of Entries | 1 |
| Gasket/O-Ring | No |
| Insert Dimension | 57.27 |
| Gender | Male |
| Mounting Style | Cable |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Metal |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP66 |
| Weight (lbs.) | 0.259000 |
