Description

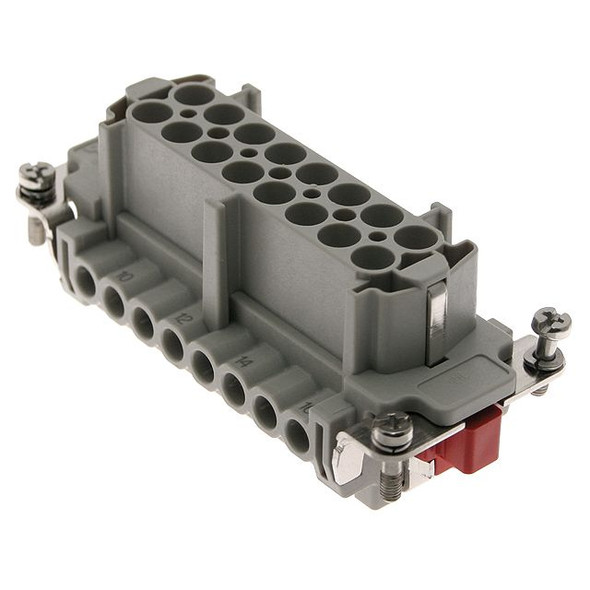

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CME series of screw terminal inserts are designed for higher voltage applications. This product offers a choice of pin counts that include 3/2, 6/2, 10/2, and 16/2. The /2 indicates the space allowed for an optional auxiliary contact for advanced opening contact pins. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 C to +125 C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | CME |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 77.27 |
| Gasket/O-Ring | No |
| Pin Count | 6 |
| Insert Dimension | 77.27 |
| Gender | Male |
| Contact Plating | Silver |
| Double Insert | 77.62 |
| Voltage Rating | 600 |
| Amperage Rating | 16 |
| Cover | No |
| Upper AWG | 12 |
| Lower AWG | 20 |
| Termination | Screw |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.154000 |
