In Stock
Mencom

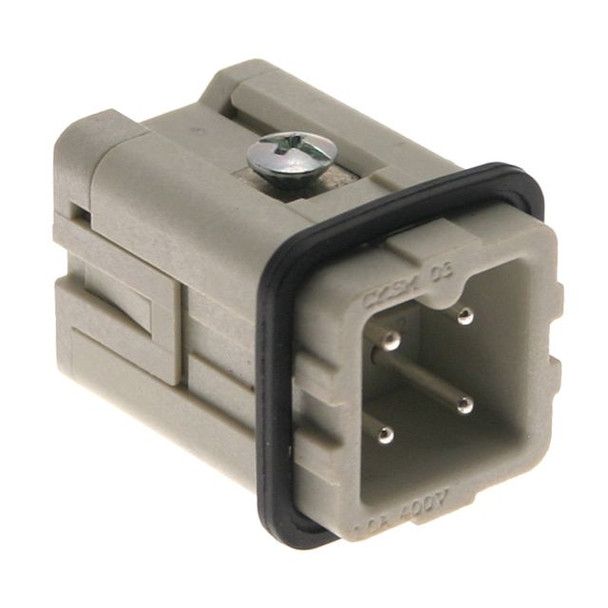

Mencom CKSM-03 Standard, CKS series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Standard Spring

No reviews yet Write a Review
$12.13
SKU:
MNCKSM-03
MPN:
CKSM-03
Current Stock:
Short Description:
Male insert for Rectangular Connector, 4 Pins
$12.13

Frequently Bought Together:

Mencom CKSM-03 Standard, CKS series, Male Rectangular Insert, size 21.21, 4 pin, 10 amp, Standard Spring | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CKS series of spring terminal inserts are rated for 10 amps with a choice of 3 or 4 pins plus a ground pin. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 C to +125 C. When needed, we also offer a selection of higher temperature inserts able to withstand extreme conditions up to 180 C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.

Resources

Product Drawing PDF PDF CKSM-03.PDF

Product Specifications

Product Type Rectangular Connectors
ILME Series CKS
Component Type Insert
Housing/Insert Type Standard
Enclosure Dimension 21.21
Gasket/O-Ring Yes
Pin Count 4
Insert Dimension 21.21
Gender Male
Contact Plating Silver
Voltage Rating 600
Amperage Rating 10
Cover No
Upper AWG 14
Lower AWG 26
Termination Standard Spring
Temperature Range in Degrees Celsius -40 C to +125 C
Weight (lbs.) 0.034000
