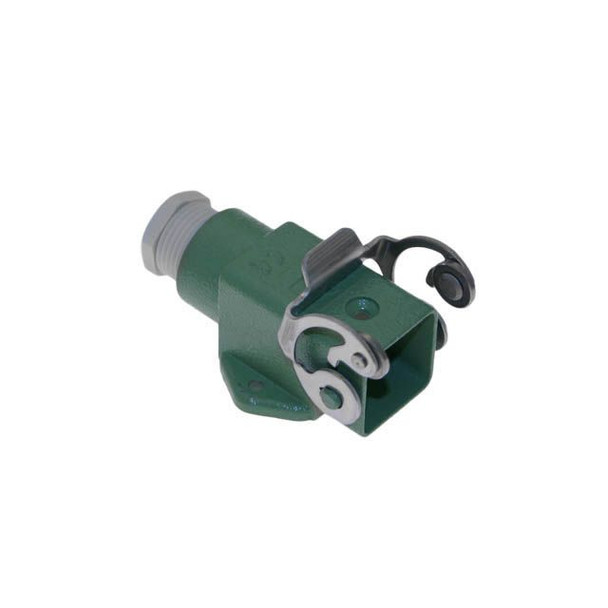

ILME is a globally recognized leader in the heavy duty industrial connector industry. For those harsh environments where the standard aluminum die cast enclosures (Hoods/Bases) are not quite enough, ILME offers an aggressive environment solution. Using the same patented stainless steel locking system, in conjunction with special paint and gasket, this series provides an ingress protection rating of IP69K. Hoods and surface mount bases come with a wide range of PG, Metric, or NPT openings to meet your specific application
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CK |
| Component Type | Base |
| Housing/Insert Type | Aggressive |
| Lever Type | Single Latch |
| Hood Entry | Side |
| Hood Thread | PG11 |
| Enclosure Dimension | 21.21 |
| Number of Entries | 1 |
| Gasket/O-Ring | Yes |
| Insert Dimension | 21.21 |
| Gender | Male |
| Mounting Style | Angled Surface Mount |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Enclosure Material | Metal |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| IP Rating | IP44 |
| Weight (lbs.) | 0.095000 |
