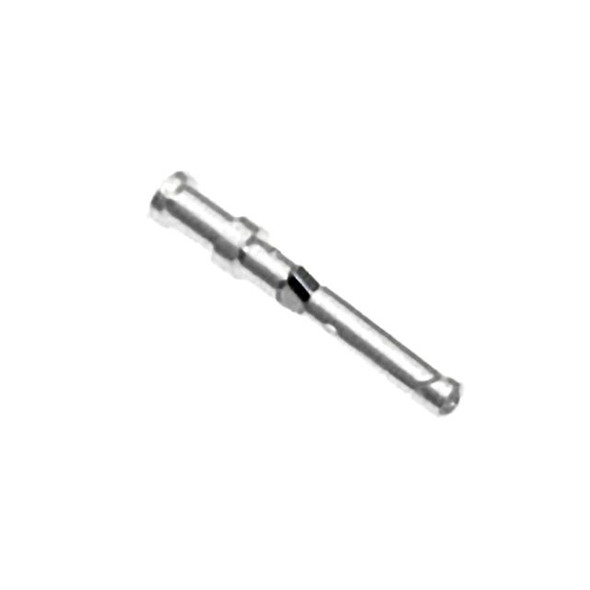

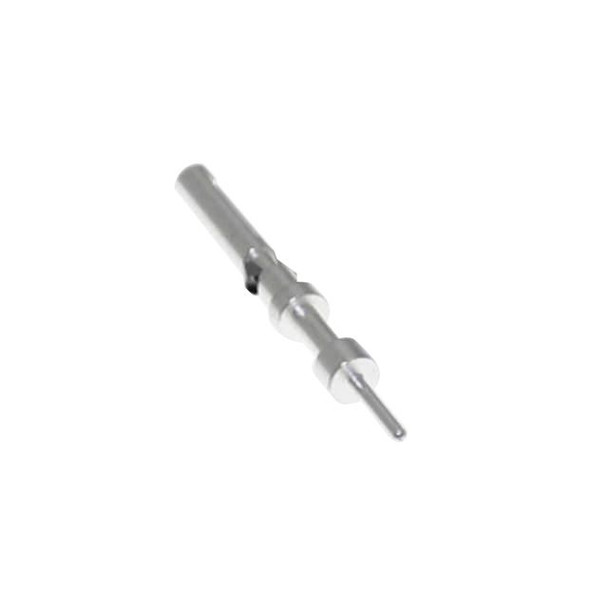

ILME is a globally recognized leader in the heavy duty industrial connector industry. Included in the product offering are high quality CD series machined contact pins. These silver or gold plated brass pins are rated for 10 amps and can accept wires from 26awg (0.14-.37mm sq.) up to 14awg (2.5mm sq.). These contact pins are used in the CD, CDD, and some CQ & CX series male and female inserts.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CD |
| Component Type | Contact Pin |
| Gasket/O-Ring | No |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating | 600 |
| Amperage Rating | 6 |
| Cover | No |
| Upper AWG | N/A |
| Lower AWG | N/A |
| Termination | PCB |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.002000 |
