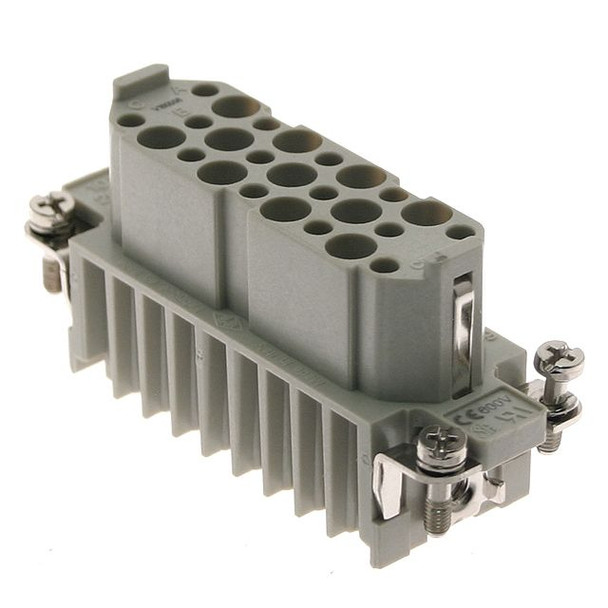

ILME is a globally recognized leader in the heavy duty industrial connector industry. The CD series of crimp terminal inserts are rated for 10 amps with a choice of pin counts that include 7, 8, 15, 25, 40, and 64. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40-deg C to +125-deg C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Resources
Product Specifications
| Product Type | Rectangular Connectors |
| ILME Series | CD |
| Component Type | Insert |
| Housing/Insert Type | Standard |
| Enclosure Dimension | 66.16 |
| Gasket/O-Ring | No |
| Pin Count | 25 |
| Insert Dimension | 66.16 |
| Gender | Female |
| Double Insert | 66.40 |
| Voltage Rating | 600 |
| Amperage Rating | 10 |
| Cover | No |
| Upper AWG | 14 |
| Lower AWG | 26 |
| Termination | Crimp |
| Temperature Range in Degrees Celsius | -40 C to +125 C |
| Weight (lbs.) | 0.081000 |
