Description

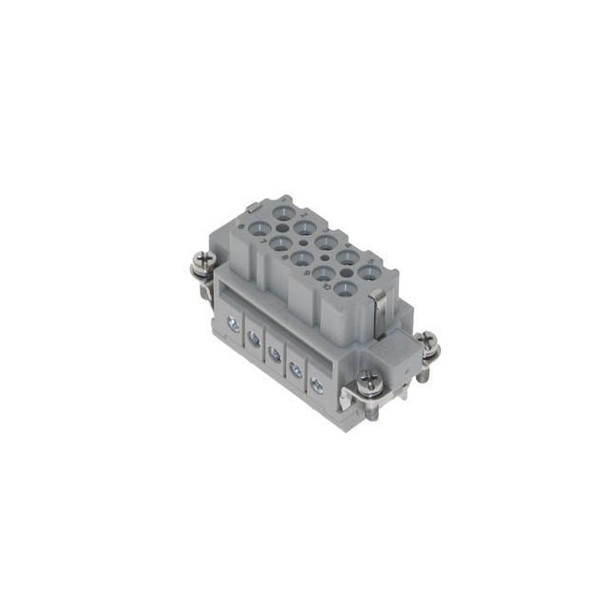

ILME is a globally recognized leader in the heavy duty industrial connector industry. The space saving CDA series of screw terminal inserts are rated for 10 amps with a choice of pin counts that include 10, 16, and 32. The ILME rectangular connector product offering includes high quality connector inserts (male and female) made of self extinguishing thermoplastic materials which offer a UL working temperature from -40 deg C to +125 deg C. When needed, we also offer a selection of higher temperature inserts able to withstand extreme conditions up to 180 deg C. When combined with the mating hoods and bases, these inserts create reliable, easy to use, quick disconnect solutions for a wide range of industrial automation applications.
Product Specifications
| Product Type | Rectangular Connectors |
|---|---|
| ILME Series | CD |
| Component Type | Insert |
| Housing/Insert Type | High-Temp |
| Enclosure Dimension | 49.16 |
| Gasket/O-Ring | No |
| Pin Count | 10 |
| Insert Dimension | 49.16 |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating | 600 |
| Amperage Rating | 16 |
| Cover | No |
| Upper AWG | 14 |
| Lower AWG | 18 |
| Termination | Screw |
| Temperature Range in Degrees Celsius | -40 C to +180 C |
| Weight (lbs.) | 0.130000 |
