Description
Need a quote? Contact - customerservice@americancableassemblies.com
Have a question? Call (413) 283-2515
Assembled In Palmer MA
Assembled with Made in USA Quabbin Wire & Cable DataMax Extreme
Ethernet Cat 6 – 26 AWG, 4 pair, shielded, PUR, Teal
M12 Cat.6A X-coded plug based on IEC PAS 61076-2-109
Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
Side 1: M12-Male plug, straight
Side 2: Open

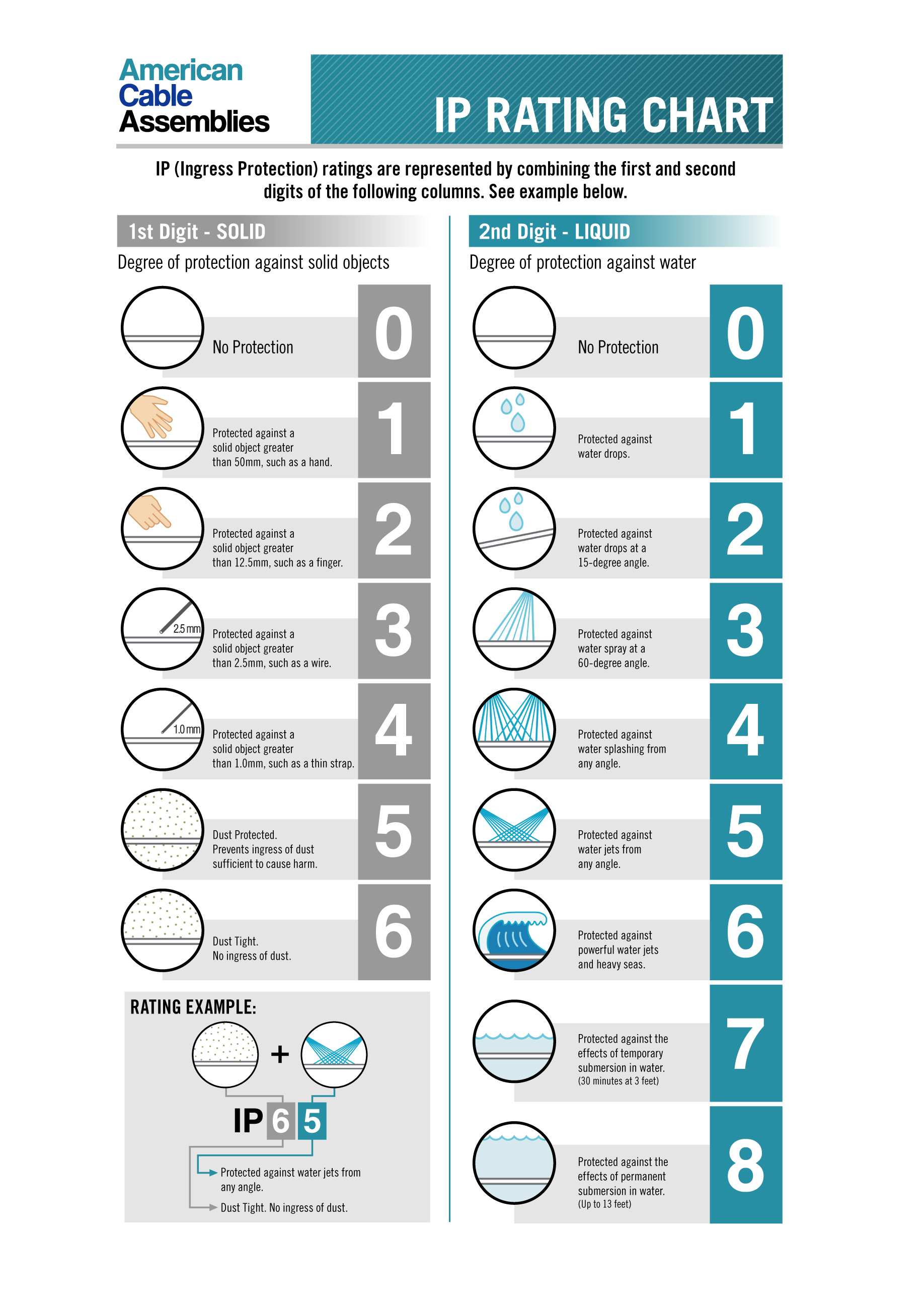

IP Rating
The IP Code, International Protection Marking, IEC standard 5925, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The equivalent European standard is EN 5925.
The digits indicate conformity with the conditions summarized in the tables below. The digit 0 is used where no protection is provided. The digit is replaced with the letter X when insufficient data has been gathered to assign a protection level.
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.
The second digit indicates the level of protection that the enclosure provides against harmful ingress of water.[3] The ratings for water ingress are not cumulative beyond IPX6. A device which is compliant with IPX7, covering immersion in water, need not be compliant with IPX5 or IPX6, covering exposure to water jets. A device which meets both tests is indicated by listing both tests separated by a slash, e.g. IPX5/IPX7.
(History: https://en.wikipedia.org/wiki/IP_Code)
