Description

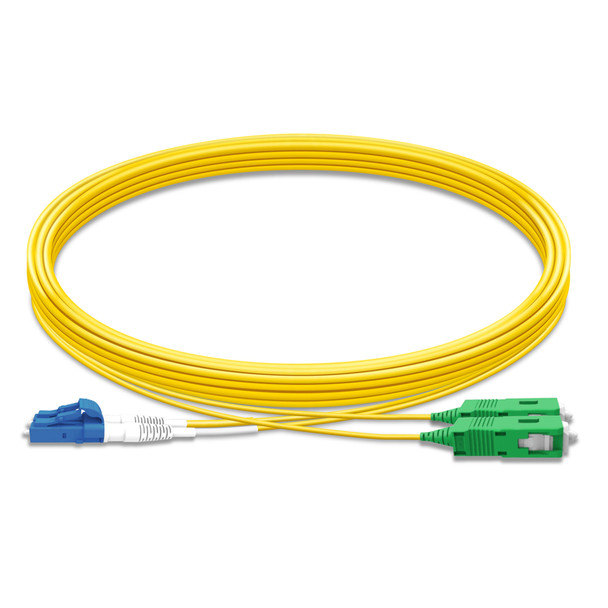

Fiber optic patch cables, also commonly known as fiber optic patch cords and fiber jumper cables, are primarily used to connect workstations to fiber outlets, and to cross-connect fiber patch panels or distribution center panels. Our premium fiber optic patch cables are assembled with superior quality Corning SMF-28® Ultra optical fiber zip-cord and premium Senko LC and SC connectors for high speed, low loss fiber network transmission.
Specifications:
- Made in the USA (Palmer, MA)
- Connector A: LC Duplex
- Connector B: SC Duplex
- Fiber Type: OS2 (single mode 9/125μm)
- Wavelengths: 1310nm / 1550nm
- Fiber Brand: TLC 2.0mm Zip Cable, tight-buffered
- Fiber Count: 2
- Polish Type A: UPC
- Polish Type B: APC
- Jacket OD: 1.95mm x 4.1mm
- Jacket color: Yellow
- Cable Rating: OFNP (Plenum)
- Minimum Bend Radius: 10mm
- RoHS Compliant: Yes
