Description

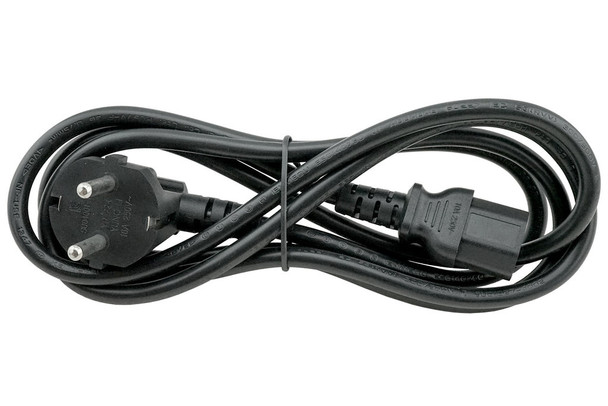

Korea to C13 power cord: Korea KSC8305 standard 3 pin plug to IEC C13 with RVV + H05VV-F 0.75mm² black wire, 6 feet and Korea KTL approved.
| Attribute | Specification |
|---|---|
| Male Plug | Korea KSC8305 (aka K60884-1) 3 prong 10A |
| Female Receptacle | IEC60320 C13 3 prong 10A |
| Wire Jacket Standard | H05VV-F |
| Gauge | 0.75mm² |
| Conductors | 3 wire |
| Copper Wire Stranding | 24 strands of 0.20mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 70°C |
| Wire Outer Diameter | 6.7mm |
| Conductor Color Code | Blue, Brown and Green with Yellow stripe / ICC (International color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 10 Amps |
| Color | Black |
| Number Per Carton | 80 |
| Carton Weight | 34 lbs (15.4kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | Korea KTL (Korea Testing Lab) |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
