Description

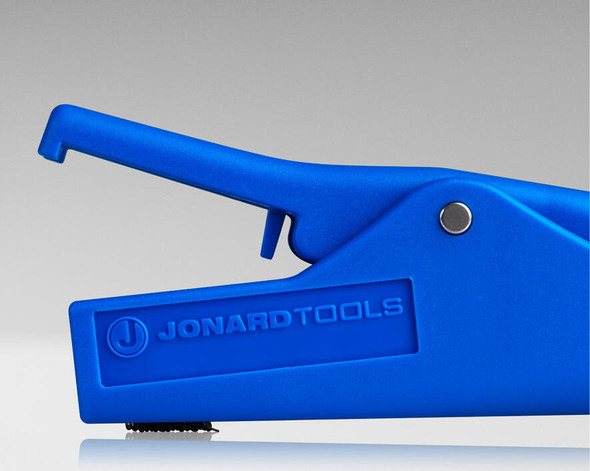

The Jonard Tools UST-175 COAX stripping tool is a three-level COAX stripper used with mini coaxial cable (CommScope 73508 and similar cables) for quick and easy termination. This COAX stripping tool features the following:
- Included blade cartridge (UST-220) provides a 3-level strip for 3-step strip connector termination, such as the ITT Cannon W58-124-9019-910 BNC crimp connector
- High carbon steel blades last over 5,000 strips
- Cartridge is reversible for ambidextrous use
- Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
- 1st Level removes 0.625" of jacket, 2nd Level exposes 0.156" of dielectric and 3rd Level exposes 0.156" of center conductor
Specifications +
| Cable Type | COAX |
|---|---|
| Cable Size | Mini COAX |
| Handle Color | Yellow |
| Product Main Color | Yellow |
| Dimensions | 4.97 in x 2.62 in x 1.03 in (12.62 cm x 6.65 cm x 2.6 cm) |
| Weight | 0.11 lb (49.032 g) |
| UPC # | 811490015319 |
| Data Sheet | Download Data Sheet | UST-175 |
