Description

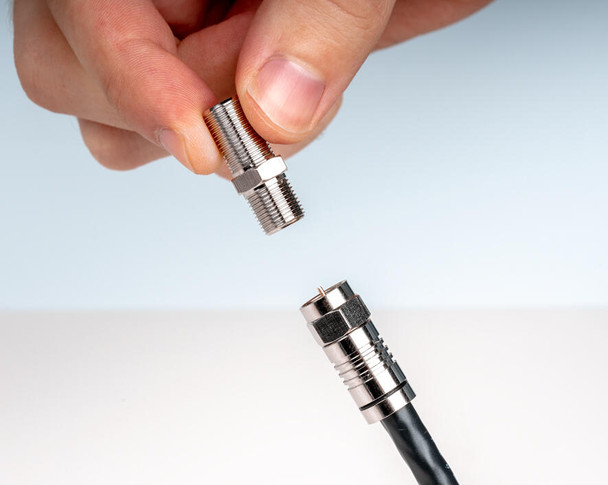

These adapters are designed to join two male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors. These adapters also feature the following:
- For performance up to 3.0 GHz
- Gold-plated contacts for maximum performance
- For use with male RG6, RG6 Quad Shield, RG59, RG59 Quad Shield CATV F connectors
Specifications +
| Connector Type | F Female Splice Adapter |
|---|---|
| Standards | IEC 60169-24 |
| Temperature Range | -40?+85? |
| Vibration | 100 m/s² (10?500Hz) |
| Impedence | 75 ? |
| Frequency Range | DC?1GHz |
| Working Voltage | 170V |
| Withstand Voltage | 500V |
| Center Contact Res. | ? 10 m? |
| Outer Contact Res. | ? 5 m? |
| Insulation Res. | ? 1000 M? |
| Return Loss | ? 25dB |
| Insertion Loss | ? 0.8 dB |
| Weight | 0.02 lb (9.08 g) |
| UPC # | 810053351703 |
| Data Sheet | Download Data Sheet | RG-F81 |
