Description

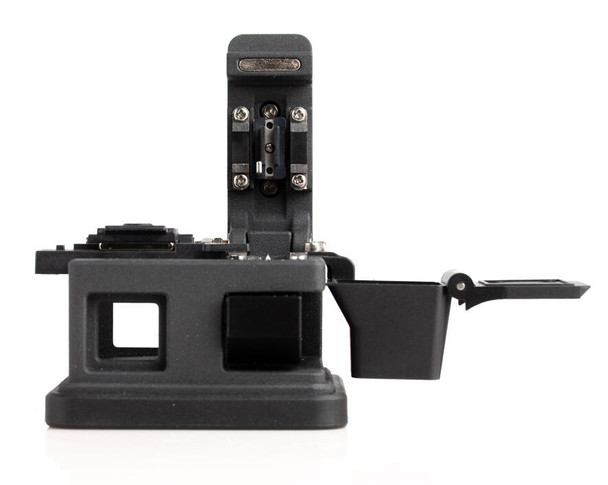

The Jonard Tools FC-500 precision fiber cleaver is designed to provide a precise cleave and prepare a fiber to be fusion spliced for 250 µm and 900 µm coated optical fiber. This fiber cleaver features the following:
- Provides a cleave with a cutting angle of less than 0.5° for optimal fiber preparation for fusion splicing
- Long life of 48,000 cuts with 16 position blades
- Lightweight and rugged design for long term durability
- Holds 250 µm and 900 µm fiber and comes with built in fiber trash can
- Scaled holder for accurate cleave lengths from 5 to 20 mm (0.20" to 0.79")
- Ideal for fiber technicians, fiber splicers, and anyone that needs to cleave a fiber optic cable prior to performing a fusion splice
Click Here for a full list of our 2021 Product Winners
Specifications +
| Cleave Length | 5 mm-20 mm (Single Fiber 0.25 mm Coating), 12 mm-20 mm (Single Fiber 0.9 mm Coating) |
|---|---|
| Cleave Angle | Less than 0.5° |
| Blade Life | 48,000 cleaves (3,000 per blade position) |
| Dimensions | 2.63" x 3.93" x 2.3" (67 mm x 100 mm x 59 mm) |
| Weight | 0.57 lb (259.688 g) |
| UPC # | 811490018051 |
| Data Sheet | Download Data Sheet | FC-500 |
