Description

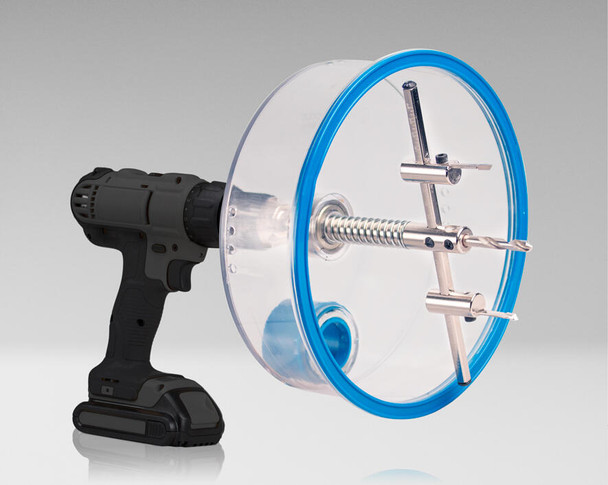

Designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following:

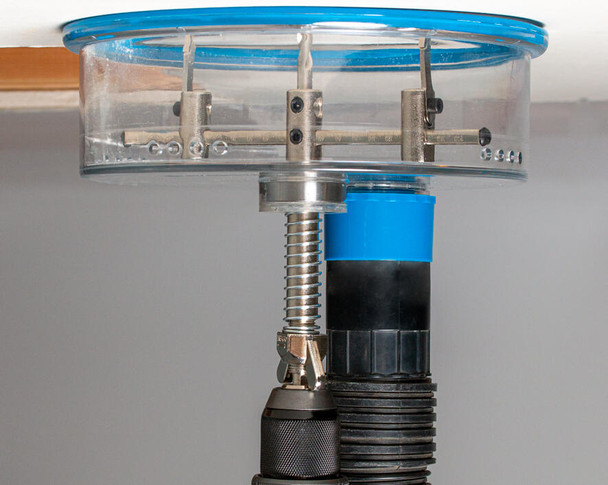

- Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
- Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16 (27 mm) thick
- Cutting depth is adjustable via hex locknut and compression spring
- Cuts hole sizes from 2.2" to 9" (56 mm - 228.6 mm) in diameter

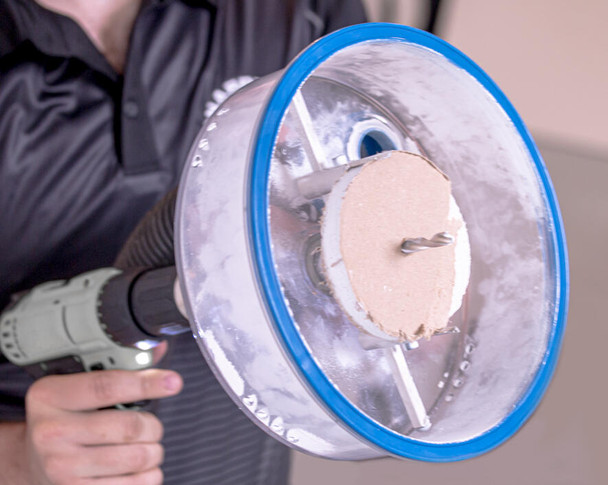

- Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
- Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
- Compression spring absorbs vibrations while cutting
- Can be used with any variable-speed drill
- Power drill and vacuum not included with hole cutter
Product Includes:
1 Cover, 1 Adjustable Hole Cutter, 1 Vacuum Port, 1 Cap, 1 Nut, 1 Set of Replacement Blades, 1 Hex Key, and a Rugged Carry Case
Specifications +
| Cut Type | Round Hole |
|---|---|
| Works On | Plywood, Sheetrock, Plasterboard, Acrylic Sheet |
| Cutting Diameter Range | 2.2"- 9" (56 mm-228.6 mm) |
| Vacuum Port Size | 2.5" (63.5 mm) |
| Maximum Cutting Depth | 1.1" (27 mm) |
| Bit Diameter | 0.236 (6.0 mm) |
| Bit Length | 2.17 (55 mm) |
| Bit Material | Steel |
| Hex Chuck Size/Arbor Size | 3/8" (9.53 mm) |
| Dimensions | 13" x 4.50" x 13" (33 cm x 33 cm x 11.4 cm) |
| Product Material | Steel |
| Weight | 6.28 lb (2851.12 g) |
| UPC # | 810053350171 |
| Data Sheet | Download Data Sheet | AHC-19 |
