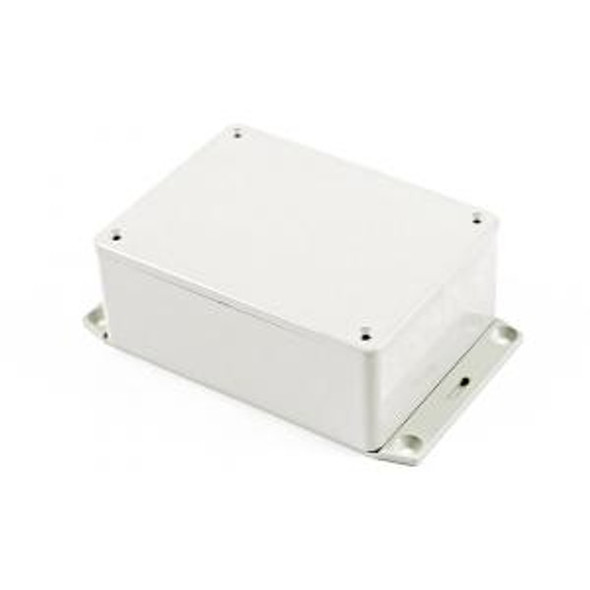

Description
Key Features:
- Designed to meet IP65.
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dist, and water
- Lid screws are self-captivating (lid holes are threaded with first installation of screws.)
- All sizes are available with clear polycarbonate lid (part numbers ending in "C")
- Easy to wall-mount using "through box-blind hole construction" whereby the wall-mounting holes are outside the gasket perimeter.
ABS Plastic Specifications:
- Suggested for indoor use
- UL Flammability rating of UL94-HB
- Color: RAL1013
- Temperature: -30 degrees C to +80 degrees C.
Polycarbonate Specifications
- Suggested for outdoor use
- UL Flammability rating of UL94-V2
- Color: RAL7035
- Temperature: -40 degrees C to +130 degrees C.
Specifications
| Packaging Type | bag |
|---|---|
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 V-2 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 106.87 |
| Max. P.C. Board Width (mm) | 56.87 |
| Drawing Sheet | Download Drawing Sheet |
