Description
Key Features:

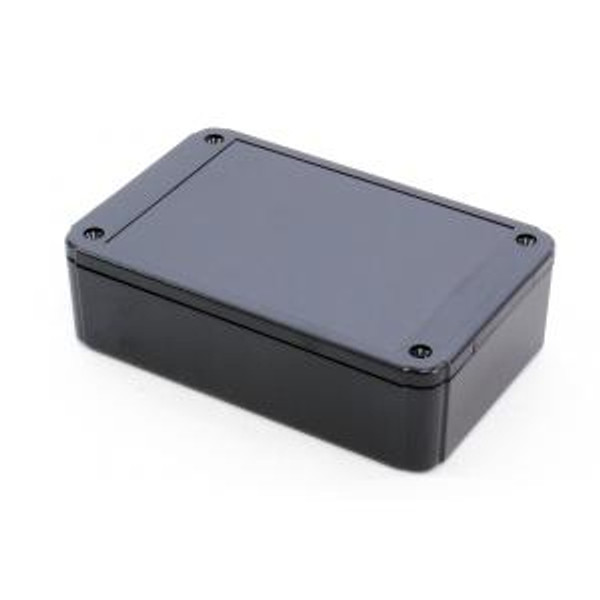

- Designed to house P.C. boards for hand-held use or wall mount.
- Molded in light grey or black general purpose ABS plastic with a light texture.
- Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
- P.C. board standoffs are molded into both halves of the enclosure (see photo tables for details).
- Designed to meet IP54.
- All sizes also available in a flanged lid version.
- Includes four M3 x 25mm self-tapping lid screws.
- Includes four M2.6 x 6mm self-tapping P.C. board screws.
- For replacement lid screws (quantity 50) order part number SC520-50.
- For replacement P.C. board screws (quantity 50) order part number SC519-50.
Specifications
| Packaging Type | bag |
|---|---|
| Material | ABS Plastic |
| Color | Trans. Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Project box, general purpose |
| Max. P.C. Board Length (mm) | 118.84 |
| Max. P.C. Board Width (mm) | 73.84 |
| Drawing Sheet | Download Drawing Sheet |
