Description
Key Features:

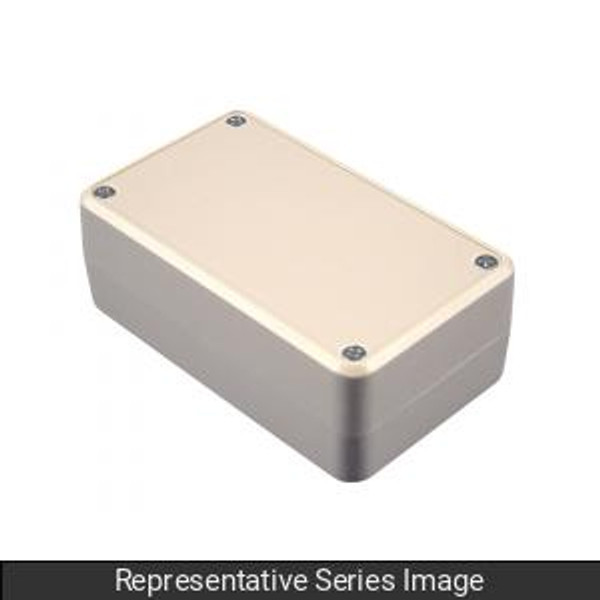

- Designed to house P.C. boards for hand-held use.
- Molded in light grey or black general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB).
- Two-part, snap action clam shell construction. Both halves include smooth recessed area for membrane, label or silkscreen.
- P.C. board standoffs are molded into both halves of the enclosure (see photo tables for details). Four short M3 screws included.
- P.C. board guides molded into top half.
- Designed to meet IP54.
- Includes four M3 assembly screws.
Specifications
| Packaging Type | bag |
|---|---|
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Project box, general purpose |
| Max. P.C. Board Length (mm) | 197.4 |
| Max. P.C. Board Width (mm) | 97.4 |
| Drawing Sheet | Download Drawing Sheet |
