Description
Key Features:
- Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Ergonomically designed for a comfortable fit into the users hand.
- Lap joint construction provides some protection against dust accumulation and splashing water.
- Removeable front panel for easy modifications.
- Molded in a light grey general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB).
- Assembled with M3 Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly is required (except for the two smallest sizes). RH3115 and the RH3135 use self tapping M2.6 screws.

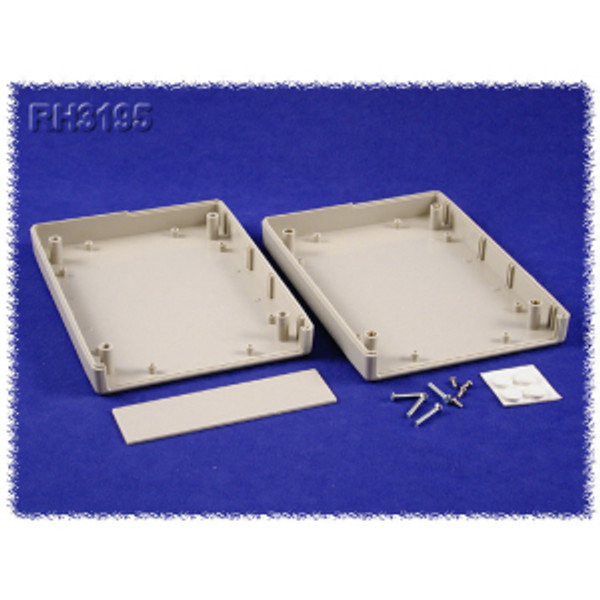

- Both top and bottom halves contain P.C. board standoffs molded in (see photos for details).
- The two largest sizes (RH3185 & RH3195) include four self adhesive rubber feet for desktop use.
Specifications
| Packaging Type | bag |
|---|---|
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| Product Category | Enclosures |
| Type | Hand-held, general purpose |
| Max. P.C. Board Length (mm) | 179.07 |
| Max. P.C. Board Width (mm) | 91.17 |
| Drawing Sheet | Download Drawing Sheet |
