Description

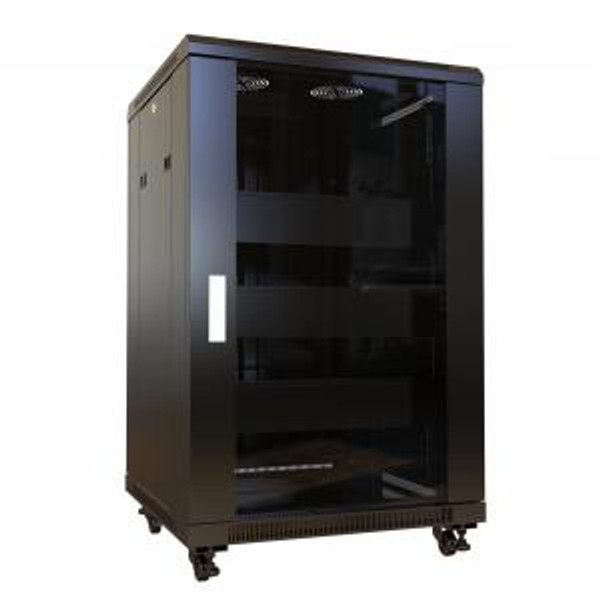

The RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications. Fully assembled, the RB-AV Series includes removable factory-installed shelves, filler panels, casters, levelling feet and tapped 10-32 mounting rails.
Features
- Available in 18U, 27U, and 42U mounting heights.
- Available in 23.62" overall width and depth.
- Passive cooling vents are located on the top, bottom and sides.
- Includes provision for up to two (2) optional fans on the top panel.
- Ships fully assembled and ready for installation on-site.
- Doors can be flipped to hinge from the opposite side.
Specifications
- Constructed in 16-gauge steel.
- Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
- Rails easily adjust in-depth in 1/4" increments.
- Tested to 950 lbs (431 kg) of equipment load.
- Grounding studs bonded to frame, side panels and doors.
- Finished in smooth black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- RoHS Compliant.
Included Components
- Steel frame with factory-installed levelling feet recessed casters and grounding studs. Casters and levelling feet are removable.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
- Starter pack of (50) 10-32 screws included.
- One (1) lightly smoked tempered glass front door with a quarter-turn lock.
- One (1) solid steel rear door with a quarter-turn lock.
- Two (2) solid removable side panels with quarter-turn lock.
- Removable cable access panels on cabinet top and bottom.
- Includes factory-installed vented rack shelves and filler/blank panels (see table below for quantity).
Specifications
| Rack Units | 18 |
|---|---|
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
