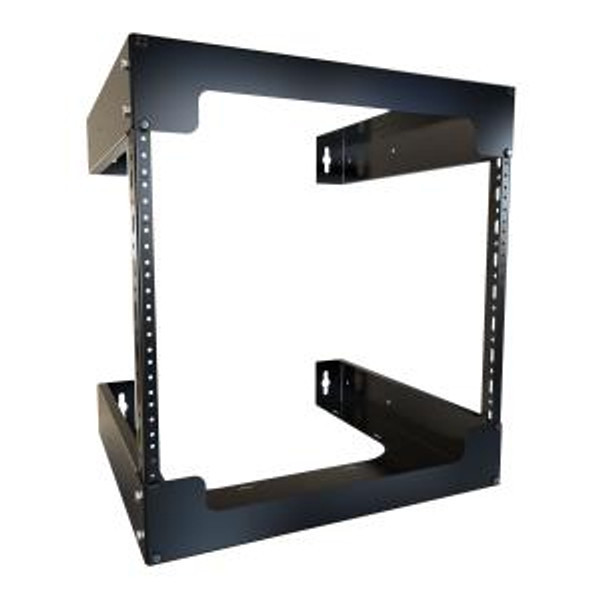

Description
Features
- The rails are constructed in 12-gauge steel while the while brackets are constructed in 14-gauge steel.
- EIA compliant 10-32 tapped rails with 19" mounting and rack unit indicators.
- Provides 18 inches of usable mounting depth.
- An optional RB-2PW-EXT extender can be used to add up to 7" of usable mounting depth while maintaining the load capacity.
- Open-rear design can be installed over existing equipment.
- Finished in RAL9005 black powder paint.
- Knockdown design ships unassembled for easy handling and shipping protection.
- Includes starter pack of SCREW1032-25 screws.
- Tested up to nearly double the suggested load rating of 200 lbs (90.72 kg).
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Specifications
| Rack Units | 8 |
|---|---|
| Rack Type | Wall Mount |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
| Drawing Sheet | Download Drawing Sheet |
