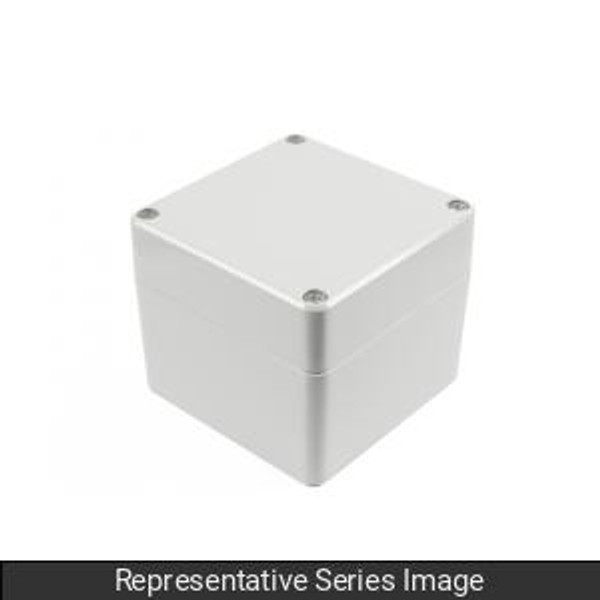

Description
Key Features:
- Material - Aluminum die-cast: G AI SI 12 / DIN 1775
- Shallow lid, deep body
- Captive stainless steel lid screws
- Neoprene oil and petrol resistant gasket standard. (-40ºC up to +80ºC)
- Degree of protection NEMA 4X, IP66, DIN 40050
- Temperature Range (-40ºC up to +80ºC)
- Single-channel Fastening System
- Special developed external mounting feet made from zinc-die-cast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose. (See accessories)
- All sizes have inner blind holes.
- An inner mounting panel - made of zinc-plated steel is also available (See accessories)
- Textured polyester powder coat, beige RAL7032 or light gray RAL7035. (can be supplied unpainted on special order)
- CSA certified, UL Listed, Type 4, for use with industrial control equipment.
Specifications
| Packaging Type | box |
|---|---|
| Material | Aluminum (Die-Cast Alloy) |
| Color | Beige |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick Wall, Water-Tight |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 462.9 |
| Max. P.C. Board Width (mm) | 303 |
