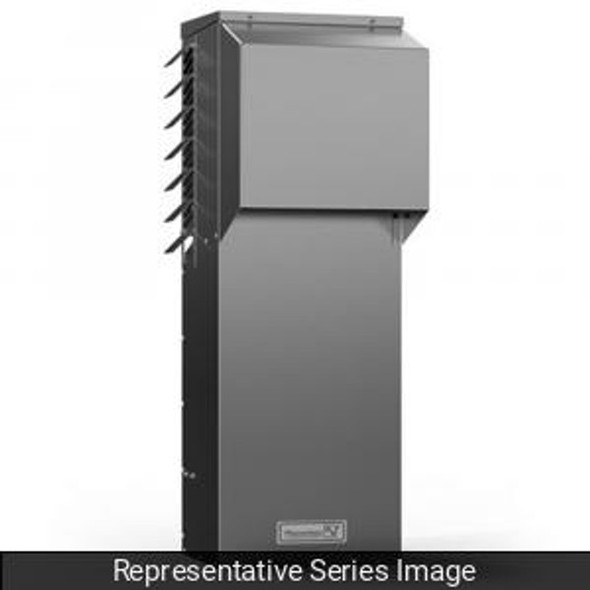

Description Designed for corrosive outdoor or washdown applications. Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10°C/18°F). Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air. Superior energy efficiency and lower maintenance costs versus air conditioners.
Standards
Maintains enclosure's NEMA 4X rating IP 56 UR, cUR and CE
Features
Compact Standard Size: 35"H x 12"W x 16"D (louvers extend 1.5" on either side) R134a refrigerant. Thermostat control accessible from inside enclosure. EMI/RFI suppression meets CE. Door contact provision for power down when enclosure door is opened. Gasket, mounting kit and template for cutout and drilling are included. Can be mounted vertically or horizontally for application flexibility. Cover finished in unpainted 304 stainless steel See Manual/Technical Data Sheet for drilling template and full electrical specifications.
Specifications
