Hammond Manufacturing

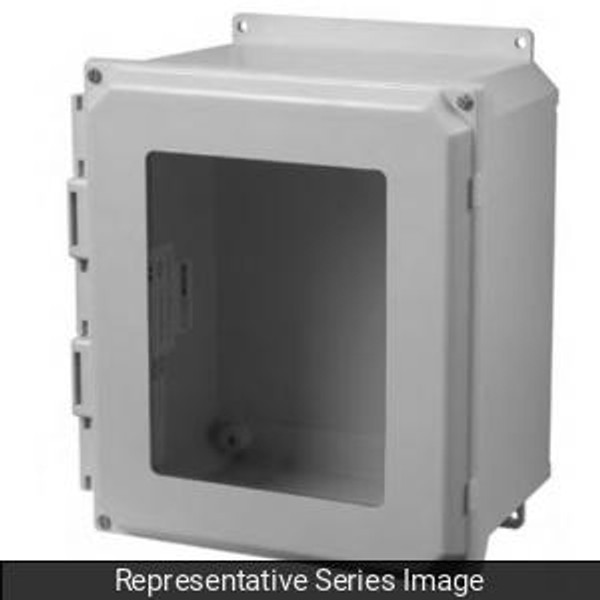

Hammond Manufacturing PJU201610LW Type 4X Polyester Window Junction Box

No reviews yet Write a Review
$812.03
SKU:
PJU201610LW
UPC:
623980022024
Availability:
Call For Availability 413 283 2515
Minimum Purchase:
1 unit
Current Stock:
Product Series:
PJUW Series
UNSPSC:
39121324
REACH Compliant:
Yes
RoHS Compliant:
Yes
Nema Rating:
Type 4X
Material:
Polyester

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments.

Standards

UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 CSA Type 1, 2, 3, 4, 4X, 12 and 13 Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18"x16". Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included. Various latching options. Enclosures are available with bonded polycarbonate viewing windows. Door is supported with a continuous stainless steel hinge pin. Captive oil resistant gasket provides a positive seal. Threaded brass inserts are provided for mounting feet to the rear of the enclosure. Operating temperatures between 130°C and -40°C (266°F to -40°F). Impact index of 6.78J (5 ft/lb). For corrosion resistance information, please refer to table in the Technical Information section.

Finish

Fiberglass polyester material has a light gray finish. Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.

Specifications

Drawing SheetDownload Drawing Sheet
Data SheetDownload Data Sheet | PJU201610LW Data Sheet
