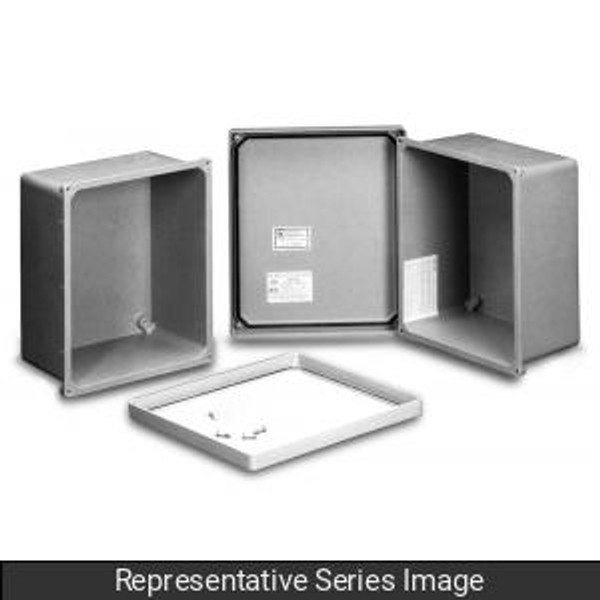

Hammond Manufacturing PJ20168 Type 4X Polyester Junction Box

No reviews yet Write a Review
$447.64
SKU:
PJ20168
UPC:
623980950686
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Series:
PJ Series
UNSPSC:
39121324
REACH Compliant:
Yes
RoHS Compliant:
Yes
Nema Rating:
Type 4X
Material:
Polyester
$447.64

Frequently Bought Together:

Hammond Manufacturing PJ20168 Type 4X Polyester Junction Box
Inc. Tax
Ex. Tax

Description

Application

Designed for use as instrument enclosures, electric, hydraulic or pneu­matic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments.

Standards

UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 UL 508A Type 6P (see table) CSA Type 1, 2, 3, 4, 4X, 12 and 13 CSA Type 6P (see table) Complies with NEMA Type 1, 2, 3, 4, 4X,12 and 13 IEC 60529, IP66 (for IP68 - see table)

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18" x 16". 10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included. Cover is fastened with captive stainless steel screws in threaded brass inserts. Captive oil resistant gasket provides a positive seal. Threaded brass inserts are provided for mounting feet to the rear of the enclosure. Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure. Operating temperatures between 130°C and -40°C (266°F to -40°F). Impact index of 6.78J (5 ft/lb). For corrosion resistance information, please refer to table in the Technical Information section.

Finish

Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fibergl

Specifications

Drawing SheetDownload Drawing Sheet
Data SheetDownload Data Sheet | PJ20168 Data Sheet
