Description
Application

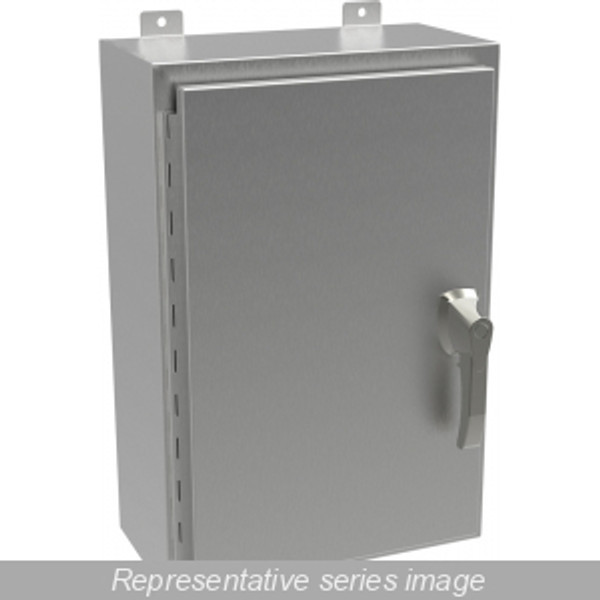

- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem.
- Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
Standards
- UL 508A Type 3R, 4, 4X and 12
- CSA Type 3R, 4, 4X and 12
- Complies with
- NEMA 3R, 4, 4X, 12 and 13
- IEC 60529, IP 66
Construction
- Formed 14 gauge 304 or 316 stainless steel.
- Continuously welded seams ground smooth.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- 316 Stainless pad lockable handle with 3 point roller latching system secures door.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket.
- Collar studs provided for mounting inner panel.
- Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- Cover and enclosure are natural stainless steel with smooth brushed finish.
Specifications
| Packaging Type | Box |
|---|---|
| Drawing Sheet | Download Drawing Sheet |
| Data Sheet | Download Data Sheet | HW30208SSHK Data Sheet |
