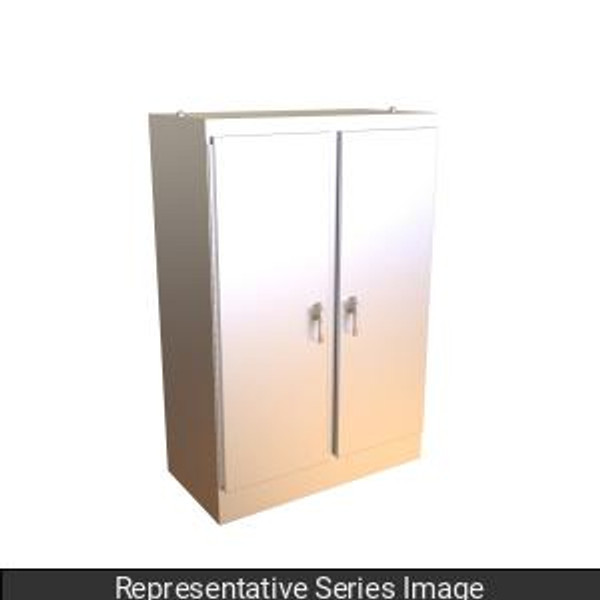

Description
Application
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Construction
- Formed 12 gauge 304 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- Doors are supported with heavy gauge continuous hinges.
- Dual Access versions have doors front and back.
- 3-pt padlocking door handle.
- Seamless poured-in place gasket.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- Center post is removable for easy installation of the inner panel.
Standards
- UL 508A Type 3R, 4X and 12
- CSA Type 3R, 4X and 12
- Complies with:
- NEMA Type 3R, 4X, 12 and 13
- IEC 60529, IP66
Finish
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
Specifications
| Packaging Type | Skid |
|---|---|
| Drawing Sheet | Download Drawing Sheet |
