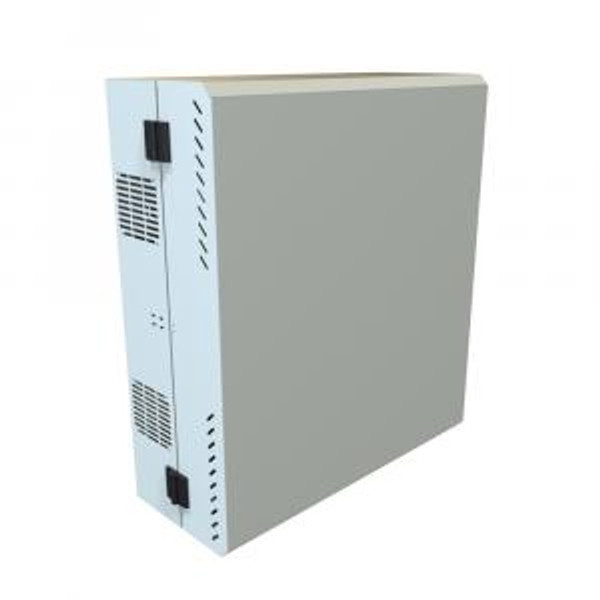

Hammond Manufacturing HLP4U31LG Low-Profile Wall Mount Rack Cabinet

Features

• Available in two (2) heights up to 41 inches of usable space, and three (3) fixed rack unit options.
• Each cabinet ships with one (1) pair of 2U 180-degree rotating mounting rack rails and one (1) pair of fixed rack rails.
  • Fixed rack mounting units available in 4U, 6U and 8U.
  • Fixed rails mount at five different angles, providing equipment mounting options.
  • Includes starter pack of SCREW1032-25 screws.
• Locking hinged front door includes side venting for airflow.
  • The door and latch can be reversed to swing left-to-right.
• The rear wall mounting section features 3.00", 2.00", 1.38" and 1.12" conduit knockouts on top and bottom.
• Side venting is designed for optional fans for active cooling.
• Generous cable management lances are located on the rear section.
• Heavy-duty keyhole for wall mounting.
• Large knockouts in the rear for cable access.

Specifications

• Body and rear section constructed of 16-gauge steel.
• Rack rails are 14-gauge steel with 10-32 tapped EIA compliant mounting rails.
• The body includes dedicated bonding points which also provides the option of drill-less mounting of electrical 4x2 utility boxes.
  • Grounding kit sold separately - GRDKIT01 or GRDKIT04.
• UL Listed 2416 load rated for up to 200 lbs (90 kg). Static Load tested to 800 lbs (362 kg).
• The body and door are finished in rugged sand-textured RAL 9005 black or textured RAL 7035 light gray powder paint. The rack rails are finished in smooth white powder paint.
• TAA compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
