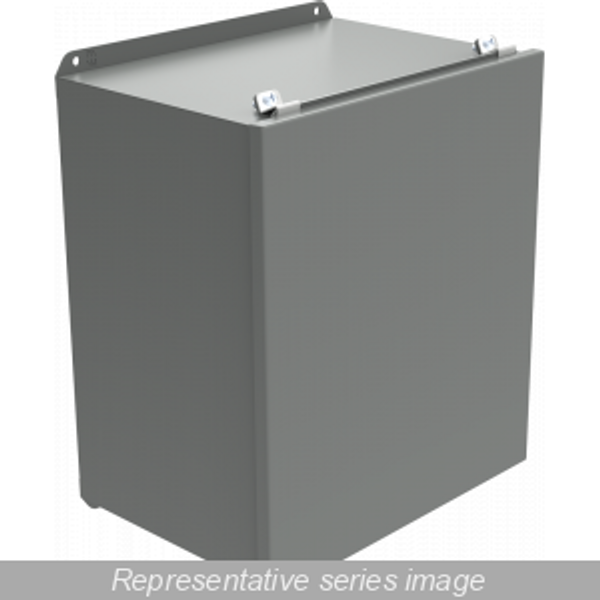

Hammond Manufacturing HJ443LP Type 4, 12 Mild Steel Junction Box

Application

• Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides a Degree of protection from falling dirt, dust, oil and water.

Standards

• UL 508A Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
  • NEMA Type 3R, 4, 12 and 13
  • IEC 60529, IP66

Construction

• Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Welded brackets provide for enclosure mounting.
• Lift off cover is secured with stainless steel clamps and stainless steel screws and retained with a stainless steel chain when open.
• Seamless poured-in place gasket.
• Internal threaded weld studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish

• Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating

Specifications
