Application

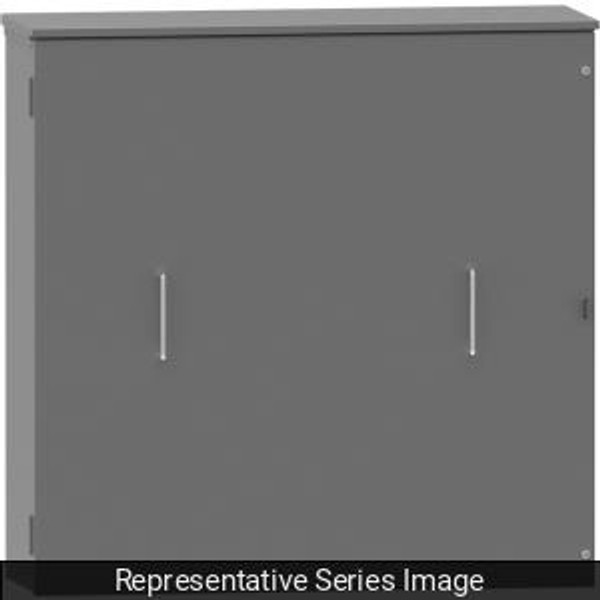

Designed for use as Current Transformer Cabinet to house and protect instrument current transformers in outdoor applications. Can also be used as a general purpose enclosure for various junction, meter, transformer and relay applications.. Provides protection against rain, sleet, snow and dripping water.
Standards
UL 50 Type 3R Complies with NEMA Type 3R IEC 60529, IP24
Construction
Body and covers formed from 14 gauge galvanized steel (12 gauge for units 30" and wider) Mounting studs for optional inner panels Integral drip shield top and seam free sides Mounting holes provided through back of enclosure Permanently installed lift off hinges Removable doors Single door design with hasp/screw closure. Double door design with handle. Padlocking provisions provided ANSI 61 Gray Polyester Powder finish inside and outside
Finish
Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.
